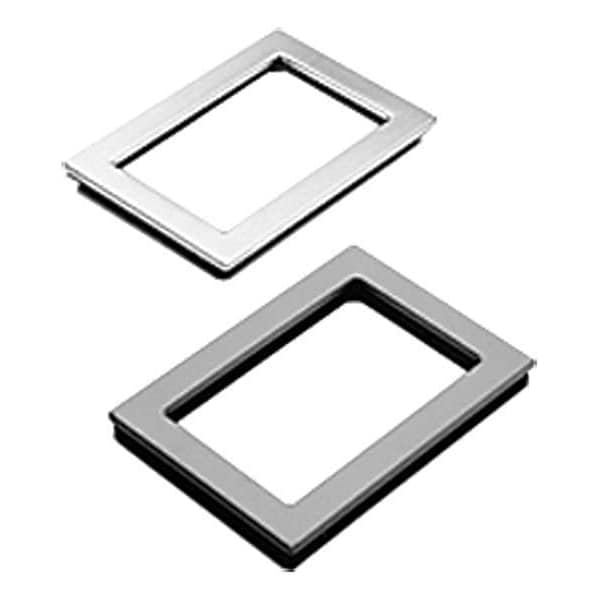

Enclosure Window Kit, 19.5in. Hx13.5in. W
| Item | Enclosure Window Kit |
|---|---|
| Length | 22.6 in |
| Width | 16.9 in |
| For Use With | NEMA 4, 4X, 12, 13 Enclosure |
| Height | 2.3 in |
| Color | Gray |
| Finish | Brushed |
| Frame Material | Stainless Steel |
| Includes | Mounting Hardware |
| Cut Out Width | 18.69 in |
| Frame Width | 13-1/2 in |
| Frame Depth | 1/4 in |
| Cut Out Height | 12.69 in |
| Description/Special Features | 304 Stainless Steel with 0.25 in Polycarbonate Window |
| Frame Height | 19-1/2 in |
| Cut Out Depth | 0.76 in |
| Material | Stainless Steel |
| Accessory Type | Window Kits |
| IP Rating | IP66 |
| Type Number | Type 4X |
| Window Size (M x N) (millimetre) | 432 x 279 |
| Cutout Size (G x H) (inch) | 18.69 x 12.69 |
| Size | 19.50x13.50x.31 in |
| Window Size (M x N) (inch) | 17 x 11 |
| Cutout Size (G x H) (millimetre) | 475 x 322 |
| Thickness (T) (gauge) | 14 |
| Thickness (T) (millimetre) | 1.98 |
| Modification Services | Yes |
| Thickness | 14 ga / 1.98 mm |
| Cutout Size | 18.69 x 12.69 in / 475 x 322 mm |
| Window Size | 432 x 279 mm / 17.00 x 11.00 in |
| Standards | UL 508A Component Recognized; Type 4, 4X (stainless steel and; non-metallic versions only), 3R, 12; File No. E61997.; UL 746C Component Recognized (non-metallic version only).; CSA Type 4, 4X (stainless steel and non-metallic versions only), 3R, 12; File No. 42186; NEMA/EEMAC 4, 4X (stainless steel and non-metallic versions only), 3R, 12; IEC 60529, IP66 |
| Window Height | 17 in |
| Window Material | Polycarbonate |
| For NEMA Enclosure Rating | 4X |
| Window Width | 11 in |
| Package Quantity | 1 |
