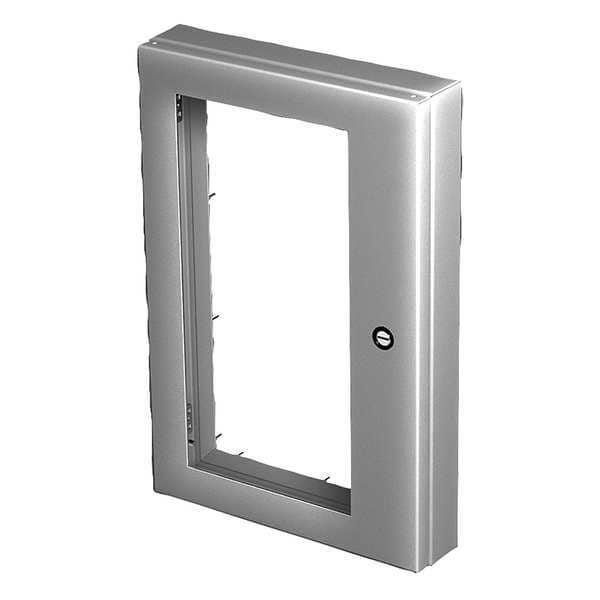

Enclosure Window Kit, 22.2in. Hx16.1in. W
| Item | Enclosure Window Kit |
|---|---|
| Length | 23.1 in |
| Width | 17 in |
| For Use With | NEMA 3R, 4, 4X, 12 Enclosure |
| Height | 4.6 in |
| Color | Gray |
| Finish | Brushed |
| Description/Special Features | Deep-Hinged 304 Stainless Steel with Polycarbonate Window, Conveniently Sized to Allow Direct Mounting In The Usable Door Area of Hoffman Nema and Concept(R) Wall-Mount Enclosures, As Well As Any Hoffman Enclosure With A Suitably Sized Mounting Surface |
| Includes | Mounting Hardware |
| Cut Out Width | 11.41 in |
| Frame Material | Stainless Steel |
| Frame Width | 16-1/8 in |
| Frame Height | 22-1/4 in |
| Frame Depth | 2-1/2 in |
| Cut Out Depth | 0.76 in |
| Cut Out Height | 18.68 in |
| Material | Stainless Steel |
| Window Size (M x N) (millimetre) | 474 x 290 |
| Size | 22.19 x 16.14 in |
| Type Number | Type 4X |
| Nema Rating | 4 Watertight |
| Modification Services | Yes |
| Window Size (M x N) (inch) | 18.68 x 11.41 |
| IP Rating | IP66 |
| Accessory Type | Window Kits |
| Thickness (T) (gauge) | 14 |
| Thickness (T) (millimetre) | 1.9 |
| Window Size | 474 x 290 mm / 18.68 x 11.41 in |
| Standards | UL 508A Listed; Type 4, 12; File No. E61997 (MS); cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 (MS); UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 (SS); cUL Listed per CSA C22.2, No. 94; Type 3R, 4, 4X, 12; File No. E61997 (SS); Stainless Steel; NEMA/EEMAC Type 3R, 4, 4X, 12; IEC 60529, IP66; Mild Steel; NEMA/EEMAC Type 4, 12; IEC 60529, IP66 |
| Thickness | 14 ga / 1.9 mm |
| Window Height | 18-11/16 in |
| For NEMA Enclosure Rating | 4X |
| Window Material | Polycarbonate |
| Window Width | 11-7/16 in |
| Package Quantity | 1 |
