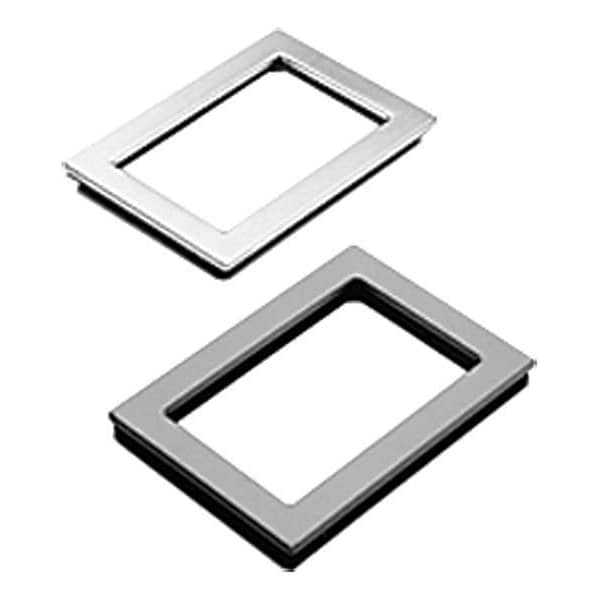

Enclosure Window Kit, 25.5in. Hx17.5in. W
| Item | Enclosure Window Kit |
|---|---|
| Length | 28-1/2 in |
| Width | 21 in |
| For Use With | NEMA 4, 12 Enclosure |
| Height | 2.4 in |
| Color | Gray |
| Finish | Powder Coated |
| Frame Depth | 1/4 in |
| Cut Out Height | 16.69 in |
| Frame Width | 17-1/2 in |
| Cut Out Depth | 0.76 in |
| Includes | Mounting Hardware |
| Cut Out Width | 24.69 in |
| Frame Material | Steel |
| Description/Special Features | Heavy Gauge Steel with 0.25 in Acrylic Window |
| Frame Height | 25-1/2 in |
| Material | Mild Steel |
| Window Size (M x N) (millimetre) | 584 x 381 |
| IP Rating | IP66 |
| Size | 25.50x17.50x.31 in |
| Window Size (M x N) (inch) | 23 x 15 |
| Thickness (T) (gauge) | 14 |
| Cutout Size (G x H) (inch) | 24.69 x 16.69 |
| Cutout Size (G x H) (millimetre) | 627 x 424 |
| Accessory Type | Window Kits |
| Color Code | ANSI 61 |
| Type Number | Type 4 |
| Modification Services | Yes |
| Thickness (T) (millimetre) | 1.9 |
| Window Size | 584 x 381 mm / 23.00 x 15.00 in |
| Thickness | 14 ga / 1.9 mm |
| Cutout Size | 24.69 x 16.69 in / 627 x 424 mm |
| Standards | UL 508A Component Recognized; Type 4, 4X (stainless steel and; non-metallic versions only), 3R, 12; File No. E61997.; UL 746C Component Recognized (non-metallic version only).; CSA Type 4, 4X (stainless steel and non-metallic versions only), 3R, 12; File No. 42186; NEMA/EEMAC 4, 4X (stainless steel and non-metallic versions only), 3R, 12; IEC 60529, IP66 |
| For NEMA Enclosure Rating | 4 |
| Window Height | 23 in |
| Window Material | Polycarbonate |
| Window Width | 15 in |
| Package Quantity | 1 |
