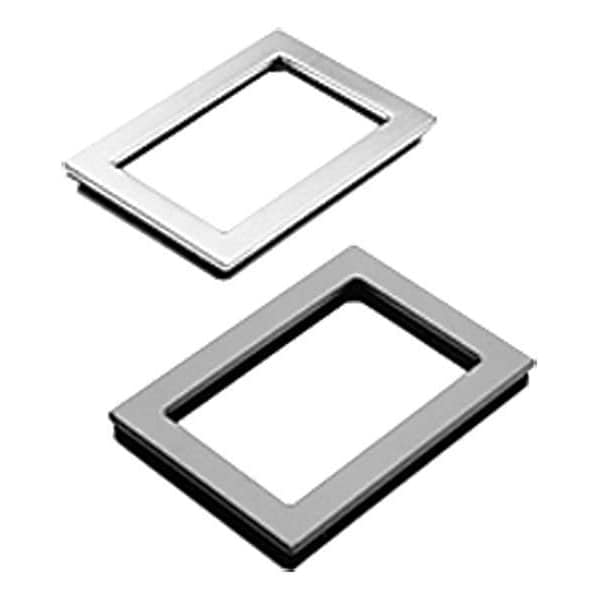

Enclosure Window Kit, 7.5 in. Hx5.5 in. W
| Item | Enclosure Window Kit |
|---|---|
| Length | 9.8 in |
| Finish | Brushed |
| Width | 7.9 in |
| Height | 3.4 in |
| Color | Gray |
| Cut Out Depth | 0.76 in |
| For Use With | NEMA 4, 4X, 12, 13 Enclosure |
| Frame Height | 7-1/2 in |
| Cut Out Height | 4.69 in |
| Includes | Mounting Hardware |
| Cut Out Width | 6.69 in |
| Description/Special Features | 304 Stainless Steel with 0.25 in Polycarbonate Window |
| Frame Width | 5-1/2 in |
| Frame Depth | 1/4 in |
| Frame Material | Stainless Steel |
| Material | Stainless Steel |
| IP Rating | IP66 |
| Accessory Type | Window Kits |
| Cutout Size (G x H) (millimetre) | 170 x 119 |
| Type Number | Type 4X |
| Modification Services | Yes |
| Window Size (M x N) (millimetre) | 127 x 76 |
| Window Size (M x N) (inch) | 5 x 3 |
| Thickness (T) (gauge) | 14 |
| Size | 7.50x5.50x.31 in |
| Thickness (T) (millimetre) | 1.98 |
| Cutout Size (G x H) (inch) | 6.69 x 4.69 |
| Cutout Size | 6.69 x 4.69 in / 170 x 119 mm |
| Thickness | 14 ga / 1.98 mm |
| Window Size | 127 x 76 mm / 5.00 x 3.00 in |
| Standards | UL 508A Component Recognized; Type 4, 4X (stainless steel and; non-metallic versions only), 3R, 12; File No. E61997.; UL 746C Component Recognized (non-metallic version only).; CSA Type 4, 4X (stainless steel and non-metallic versions only), 3R, 12; File No. 42186; NEMA/EEMAC 4, 4X (stainless steel and non-metallic versions only), 3R, 12; IEC 60529, IP66 |
| Window Width | 3 in |
| Window Height | 5 in |
| Window Material | Polycarbonate |
| For NEMA Enclosure Rating | 4X |
| Package Quantity | 1 |
