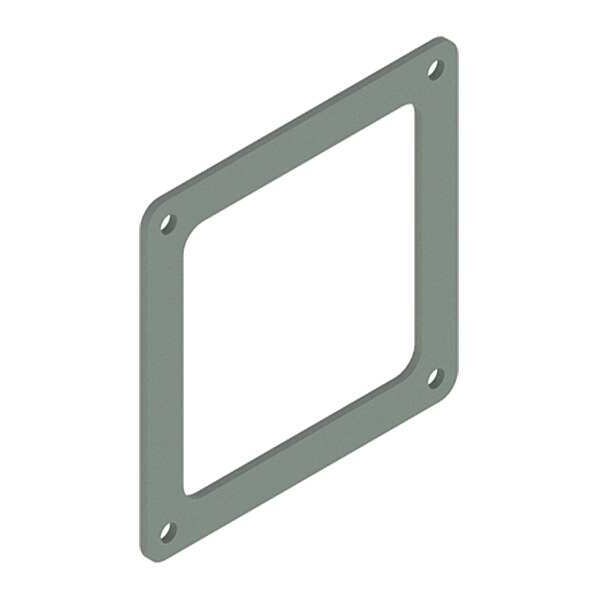

Feed-Thru Box Connector, 12 Type, NEMA 12 Rating, Steel, Painted
| Item | Feed-Thru Box Connector |
|---|---|
| With/Without Knockouts | Without Knockouts |
| NEMA Enclosure Type | 12 |
| Finish | Painted |
| Length | 5-3/8 in |
| Height | 5-7/16 in |
| For Use With | Hoffman F44 Series Wireways |
| Width | 8 in |
| NEMA Rating | NEMA 12 |
| Material | Steel |
| Function | When Wireway Enters An Enclosure, A Box Connector Should Be Used On The Inside of The Enclosure to Ensure A Tight And Stable Seal |
| Standards | CSA EMP-1-1967, EEMAC 12, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA, UL 870 |
| For Wireway Width x Height | 4 in x 4 in |
| Color | Gray |
| Gauge | 14 ga |
| For Wireway Width | 4 in |
| Includes | Gasket |
| For Wireway Height | 4 in |
| Length (Straight Wireway) | 5-3/8 in |
| With Knockouts | Without Knockouts |
| Modification Services | Yes |
| Thickness (T) (millimetre) | 1.9 |
| Thickness (T) (gauge) | 14 |
| Color Code | ANSI 61 |
| Width (W) (millimetre) | 102 |
| Type | Box Connector |
| Height (H) (inch) | 4 |
| Height (H) (millimetre) | 102 |
| Width (W) (inch) | 4 |
| IP Rating | IP54 |
| Protection Rating | NEMA Type 12 |
| Wireway | Feed-Through NEMA Type 12 Wireway |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
