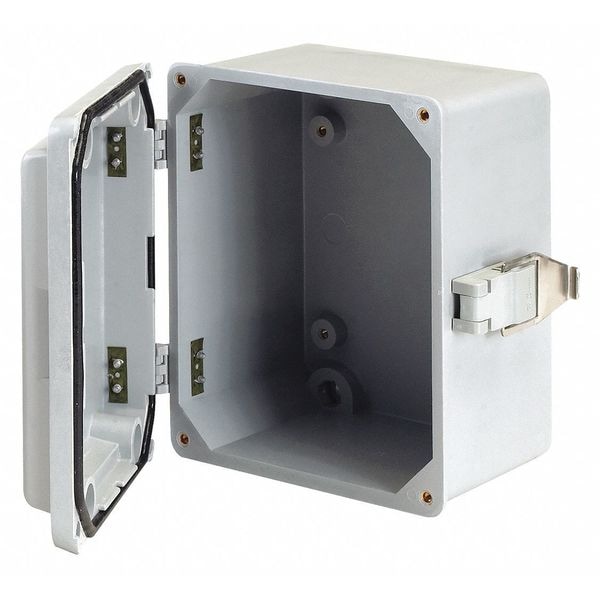

Fiberglass Electrical Enclosures, 14 in H, 7 in D, 10 in W, NEMA 4X, Screw Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 14 in |
| Nominal Depth | 7 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Fiberglass |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Gray |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Foam-In-Place |
| Interior Panel | 32FR63 |
| Enclosure Cover Features | Quick Release Latch |
| Series | A50 |
| IP Rating | IP66 |
| Standards | cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated Per UL 508A, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Features | 4X Watertight, corrosion-resistant |
| Enclosure Material | Fiberglass |
| Capacity | 983 cubic in |
| Weight | 7.5 |
| Latch Quantity | 2 |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 0.12 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R, 3 |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | A12P10AL |
| Package Quantity | 1 |
