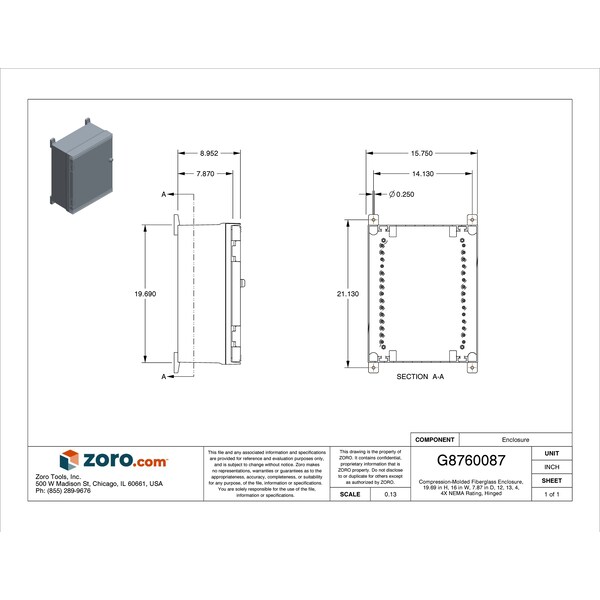

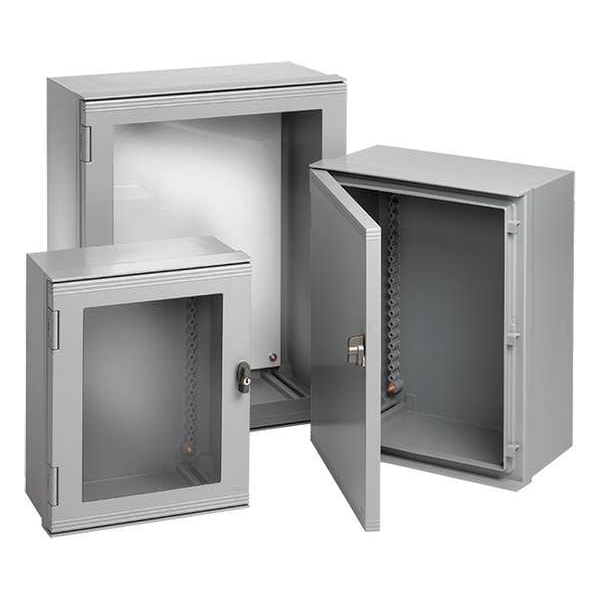

Fiberglass Electrical Enclosures, 19.69 in H, 7.87 in D, 16 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 16 in |
| Nominal Height | 19.69 in |
| Nominal Depth | 7.87 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Fiberglass |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Acrylic Enamel |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Standards | CSA File No 42186: Type 3, 3R, 4, 4X, 12, 13, cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated per UL 508A, File No E61997, File No E619977, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Series | UX1-Ultrx |
| Gasket | Polyurethane |
| Enclosure Cover Features | 1/4 Turn Latch |
| Interior Panel | 32FT31 |
| Includes | Mounting Bracket |
| Enclosure Material | Fiberglass |
| Features | 4X Watertight, corrosion-resistant |
| Weight | 21.8 |
| Capacity | 2,637 cu in |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Body Material Thickness | 0.15 in |
| Cover Closure Type | Hinged |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| Compatible Panel Model Number | A20P16, A20P16G |
| Hazardous Location Specification | Not Applicable |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Package Quantity | 1 |
