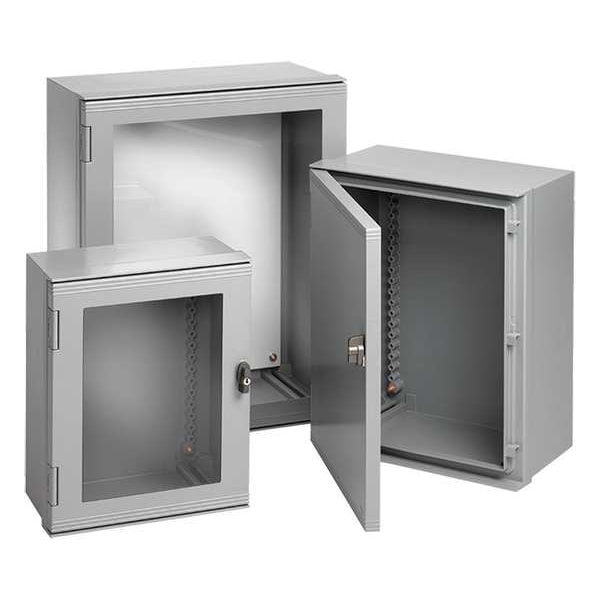

Fiberglass Electrical Enclosures, 23.62 in H, 11.81 in D, 24 in W, NEMA 4X, Hinged
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 23.62 in |
| Nominal Depth | 11.81 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Fiberglass |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Acrylic Enamel |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | UX1-Ultrx |
| Enclosure Cover Features | 1/4 Turn Latch |
| Standards | CSA File No 42186: Type 3, 3R, 4, 4X, 12, 13, cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated per UL 508A, File No E61997, File No E619977, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Gasket | Polyurethane |
| Interior Panel | 32FT44 |
| IP Rating | IP66 |
| Includes | Mounting Bracket |
| Features | 4X Watertight, corrosion-resistant |
| Enclosure Material | Fiberglass |
| Weight | 37.4 |
| Capacity | 7,090 cu in |
| Compatible Panel Model Number | A24P24, A24P24G |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Body Material Thickness | 0.15 in |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Gasket Material | Seamless Foam-In-Place |
| Package Quantity | 1 |
