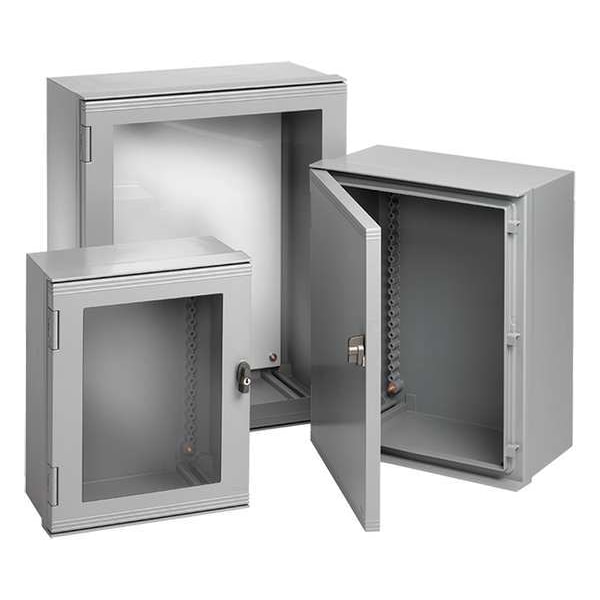

Fiberglass Electrical Enclosures, 39.37 in H, 11.81 in D, 32 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 39.37 in |
| Nominal Depth | 11.81 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Fiberglass |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Acrylic Enamel |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA File No 42186: Type 3, 3R, 4, 4X, 12, 13, cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated per UL 508A, File No E61997, File No E619977, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Gasket | Polyurethane |
| Interior Panel | 32FT62 |
| Enclosure Cover Features | 1/4 Turn Latch |
| Series | UX1-Ultrx |
| Includes | Mounting Bracket |
| IP Rating | IP66 |
| Enclosure Material | Fiberglass |
| Features | 4X Watertight, corrosion-resistant |
| Weight | 62 |
| Capacity | 15954 cubic in |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Gasket Material | Seamless Foam-In-Place |
| Compatible Panel Model Number | A40P30, A40P30G |
| Hazardous Location Specification | Not Applicable |
| Body Material Thickness | 0.15 in |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Package Quantity | 1 |
