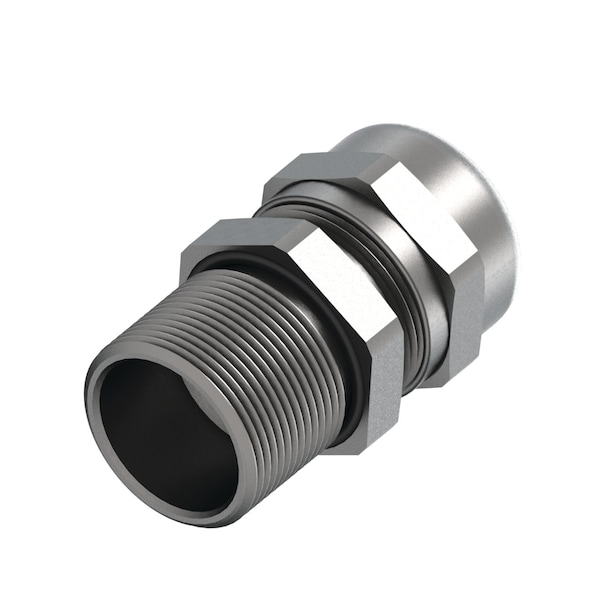

Hazloc Cable Glands for Non-Armored Cable (Ex d/e/tb)
| Item | Hazloc Cable Glands for Non-Armored Cabl |
|---|---|
| Material | Stainless Steel |
| Color | Unpainted |
| Length | 7 in |
| Standards | II2GD Ex d IIC Gb, Ex e IIC Gb, Ex tb IIIC Db IP66/68; Approved to Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/; EN 60079-7, IEC/EN 60079-31, UL2225, CAN/CSA-C22.2 No.60079-; 0, CAN/CSA-C22.2 No.60079-7, CAN/CSA-C22.2 No.60079-31; Ingress Protection: IP66/68 (EN60529); Certificate No.: IMQ 13 ATEX 018X / IECEx IMQ 13.0006X; Suitable for use in:; Zone 1 and 2, Gas Group IIC; Zone 21 and 22, Dust Group IIIC; UL Listing No: E474828. Suitable for use in:; Class I, Zone 1, AEx e IIC; Class I, Zone 2, AEx e IIC; Zone 22, AEX tc IIIC |
| Size | M63x1.5 |
| Finish | Brushed |
| Height | 2-1/4 in |
| Width | 5-1/2 in |
| Clamping Range Diameter (inch) | 1.38-1.77 |
| Seal | Silicone |
| Clamping Range Diameter (millimetre) | 35.0-45.0 |
| IP Rating | IP66/68 |
| Clamping Range Diameter | 35.0-45.0 mm / 1.38-1.77 in |
| Package Quantity | 1 |
