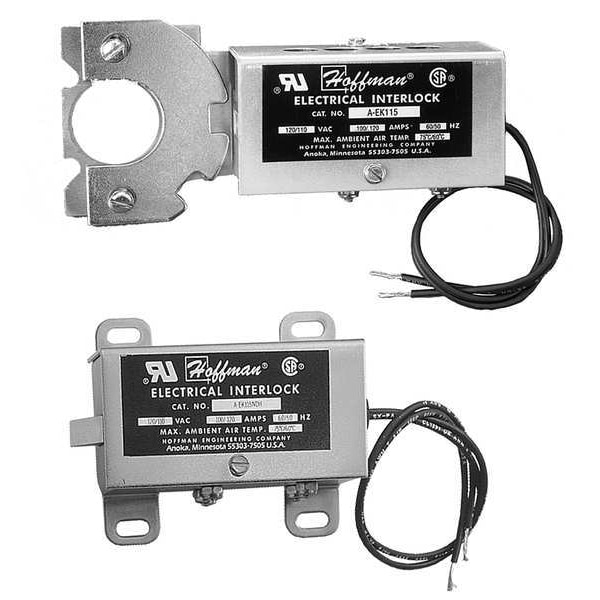

Interlock Kit, NOVAL Accessory, Steel
| Item | Interlock Kit |
|---|---|
| Material | Steel |
| Color | Natural |
| Application | Provides Positive Internal Safety Lockout On Electrical Enclosures While The Equipment is Energized |
| Sub-Category | Locking Accessories |
| For Use With | One-Door Type 4 and 4X, Two-Door Type, One-Door Type 12 Enclosures, Large Size Junction Boxes |
| Length | 5.3 in |
| Width | 3.7 in |
| Volts AC, 50/60 Hz (volt) | 220/240 |
| Height | 3 in |
| Finish | Plated |
| Volts AC, 50/60 Hz | 220/240 V |
| Inrush Current @ 50 Hz | 0.35 A |
| For Enclosure Type | All One-Door Type 12, All Two-Door Type 4 and 12, All Type 4X with 3-Point Latch, Free-Standing Type 12 |
| Product Type | Interlock |
| Inrush Current @ 60 Hz | 0.32 A |
| Frequency | 60 Hz |
| Normal Current @ 50 Hz | 0.06 A |
| Normal Current @ 60 Hz | 0.05 A |
| Latching Style | Exterior Latching Only |
| Voltage | 240 V AC |
| Package Quantity | 1 |
