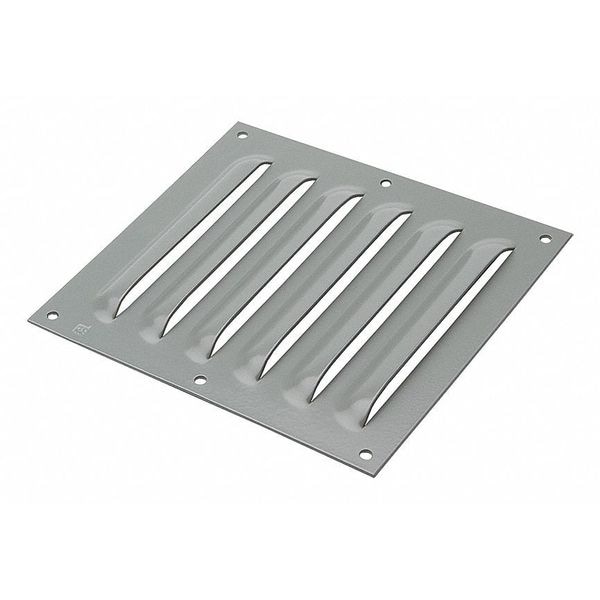

Louver Plate Kit, 10.56 in. Hx9.5 in. W
| Item | Louver Plate Kit |
|---|---|
| Length | 13-1/4 in |
| Finish | Powder Coated |
| Width | 9-1/2 in |
| For Use With | Enclosure Air Conditioner |
| Height | 1 in |
| Color | Gray |
| Frame Material | Steel |
| Cut Out Height | 9.31 in |
| Frame Depth | 0.31 in |
| Frame Height | 10.56 in |
| Frame Width | 9-1/2 in |
| Includes | Mounting Hardware |
| Cut Out Depth | 1/2 in |
| Cut Out Width | 8 in |
| Description/Special Features | (8) Louvers |
| Depth | 0.31 in / 8 mm / 8 mm |
| Material | Mild Steel |
| Thickness | 14 gauge |
| Width (W) (inch) | 9.5 |
| Thickness (T) (gauge) | 14 |
| Width (W) (millimetre) | 241 |
| Color Code | ANSI 61 |
| Size | 10.56 x 9.50 in |
| Usable Area (M x N) (square inch) | 16.15 |
| Thickness (T) (millimetre) | 1.9 |
| Depth (D) (inch) | 0.31 |
| Usable Area (M x N) (square centimetre) | 104.19 |
| Height (H) (inch) | 10.56 |
| Depth (D) (millimetre) | 8 |
| Height (H) (millimetre) | 268 |
| Usable Area | 16.15 in² / 104.19 cm² |
| Louvre Quantity | 8 |
| Number of Louvers | 8 |
| Overall Width | 9-1/2 in |
| Overall Depth | 0.31 in |
| Overall Height | 10.56 in |
| Package Quantity | 1 |
