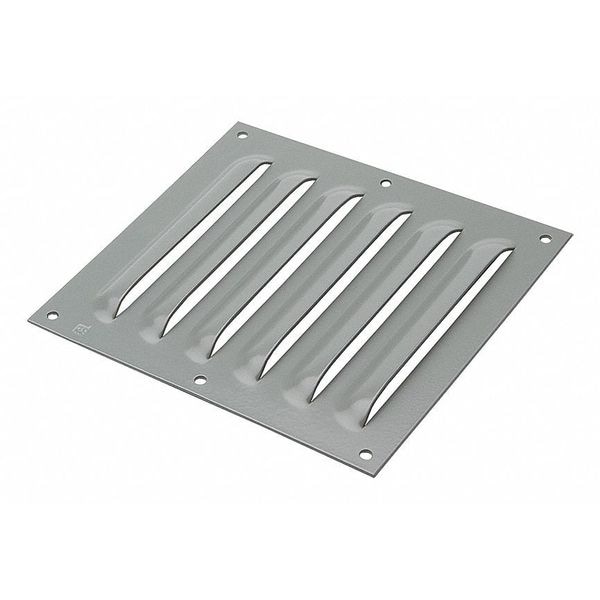

Louver Plate Kit, 4.75 in. Hx4.5 in. W
| Item | Louver Plate Kit |
|---|---|
| Length | 10.3 in |
| Width | 4-1/2 in |
| Height | 0.2 in |
| Color | Gray |
| Frame Depth | 1/4 in |
| Cut Out Depth | 1/2 in |
| Includes | Mounting Hardware |
| Description/Special Features | (4) Louvers |
| Cut Out Width | 3 in |
| For Use With | Enclosure Air Conditioner |
| Frame Material | Steel |
| Finish | Powder Coated |
| Frame Height | 4-3/4 in |
| Frame Width | 4-1/2 in |
| Cut Out Height | 3-1/2 in |
| Material | Mild Steel |
| Depth | 0.25 in / 6 mm / 6 mm |
| Depth (D) (inch) | 0.25 |
| Usable Area (M x N) (square centimetre) | 11.35 |
| Width (W) (millimetre) | 114 |
| Usable Area (M x N) (square inch) | 1.76 |
| Thickness | 14 gauge |
| Height (H) (millimetre) | 121 |
| Color Code | ANSI 61 |
| Depth (D) (millimetre) | 6 |
| Thickness (T) (gauge) | 14 |
| Width (W) (inch) | 4.5 |
| Thickness (T) (millimetre) | 1.9 |
| Height (H) (inch) | 4.75 |
| Size | 4.75 x 4.50 in |
| Louvre Quantity | 4 |
| Usable Area | 1.76 in² / 11.35 cm² |
| Overall Width | 4-1/2 in |
| Overall Height | 4-3/4 in |
| Overall Depth | 1/4 in |
| Number of Louvers | 4 |
| Package Quantity | 1 |
