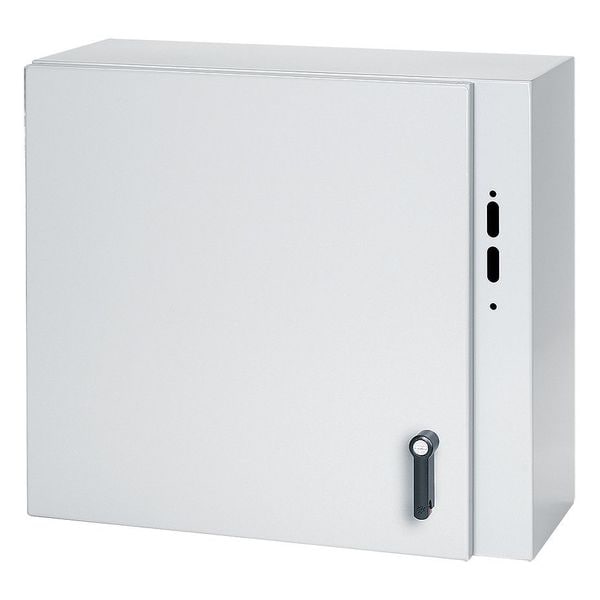

Mild Steel Electrical Enclosures, 24 in H, 8 in D, 22 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 22 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Mild Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Interior Panel | 32FK20 |
| Metal Gauge | 14/16 ga |
| Includes | Grounding Stud |
| Standards | cUL Listed per CSA C22.2 No. 94, File No. E61997, UL 508A Listed |
| Enclosure Cover Features | Latch with 2 or 3 Internal Locking Points |
| Gasket | Polyurethane |
| Series | CWD |
| Features | 4 Watertight |
| Enclosure Material | Steel |
| Weight | 65 |
| Latch Quantity | 1 |
| Exterior Color | Gray |
| Compatible with Panel Model Numbers | CP2420 |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Gasket Material | Polyurethane |
| Body Material Thickness | 16 ga |
| Includes Handle | Handle Included |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 12, 4 |
| Package Quantity | 1 |
