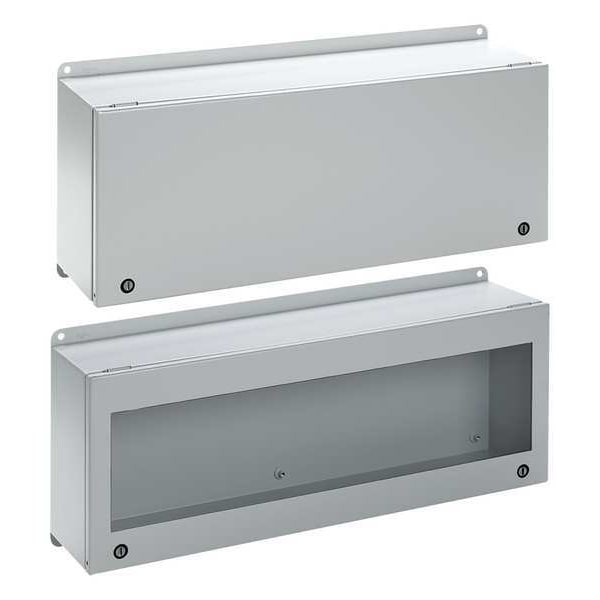

Mild Steel Electrical Enclosures, 9.06 in H, 6.10 in D, 18 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 18 in |
| Nominal Height | 9.06 in |
| Nominal Depth | 6.1 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Mild Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Light Gray |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Includes | Grounding Hardware, Panel Mounting Screws |
| Series | A54 |
| Interior Panel | 32FE90 |
| Gasket | Neoprene |
| Metal Gauge | 16 ga |
| Standards | CSA File Number 42186: Type 4, 12, cUL Listed Per CSA C22.2 No 94, File No E61997, File No E61997 (Solid Door Only), IEC 60529, NEMA/EEMAC Type 3, 4, 12, Type 3, 4, 12, UL 508A Listed |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Enclosure Material | Steel |
| Features | 12 Indoor, dust-resistant |
| Weight | 13.8 |
| Body Material Thickness | 16 ga |
| NEMA Enclosure Rating | 12, 4, 3 |
| Cover Style | Solid |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown |
| Hazardous Location Specification | Not Applicable |
| Compatible Panel Model Number | LP2346 |
| Gasket Material | Seamless Foam-In-Place |
| Package Quantity | 1 |
