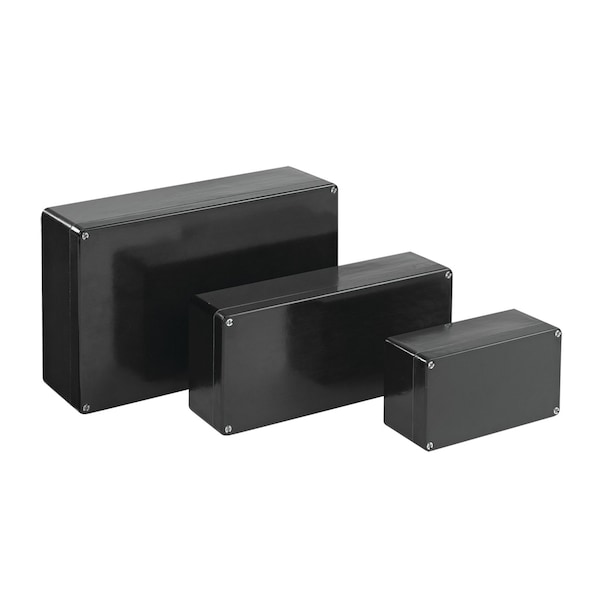

Polyester Electrical Enclosures, 8.66 in H, 3.54 in D, 4.72 in W, NEMA 4, 4X, 12, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4.72 in |
| Nominal Height | 8.66 in |
| Nominal Depth | 3.54 in |
| Enclosure NEMA Rating | NEMA 4, 4X, 12 |
| Material of Enclosure | Polyester |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Black |
| Finish | Smooth Low Gloss |
| Mounting | Panel, DIN |
| Solid / Clear Cover | Solid |
| Standards | Type 4, 4X, 12; File No. E61997; UL508A Listed; cUL Listed per CSA C22.2 No. 94; Type 4, 4X, 12; File No. E61997; ATEX Directive 2014/34/EU; ATEX; IBExU16ATEX1234U; Ex eb IIC Gb; Ex ta IIIC Da IP66; EN60079-0; EN60079-7; EN60079-31; Service temperature -55C to +135C; IECEx; IECEx IBE16.0049U; Ex eb IIC Gb; Ex ta IIIC Da IP66; IEC 60079-0; IEC 60079-7; IEC 60079-31; Service temperature -55C to +135C; NEMA / EEMAC Type 4, 4X, 12; IEC 60529, IP66 |
| Features | 12 Indoor, dust-resistant |
| Weight | 4.1 |
| Package Quantity | 1 |
