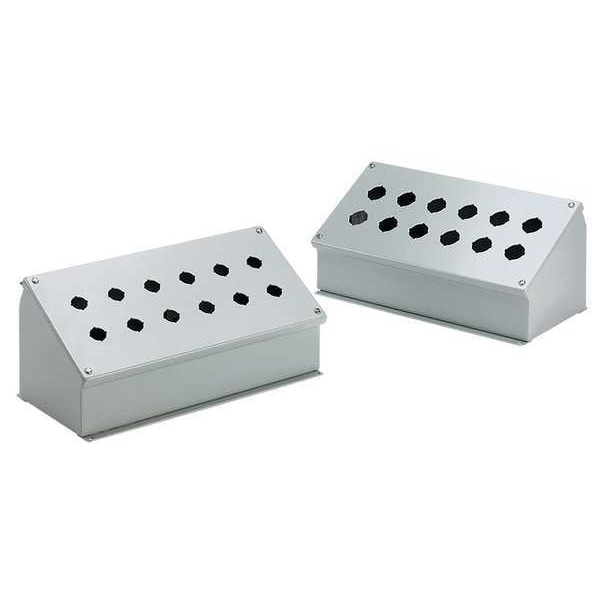

Recinto para botón de empuje, 7.25 pulgadas de alto, acero suave.
| Number of Columns | 3 |
|---|---|
| Item | Push Button Enclosure |
| Hole Size | 30 mm |
| Material | Steel |
| Conduit Size | No Conduit Entrance Holes Provided |
| Number of Holes | 6 |
| NEMA Rating | 12 |
| Dimensions | 7-1/4 in H x 8-1/2 in W x 6-3/4 in D |
| Height | 7-1/4 in |
| Width | 8-1/2 in |
| Depth | 6-3/4 in |
| Color | Gray |
| Standards | CSA C22.2 File No. E61997, cUL, UL 508A File No. E61997 |
| Includes | Captive Cover Screws, Grounding Stud, Oil Resistant Gasket |
| Mounting Style | External Feet |
| Finish | Powder Coated |
| Width (W) (inch) | 8.5 |
| Hole Size (millimetre) | 30.5 mm |
| Hole Quantity | 6 |
| Depth (D) (inch) | 6.75 |
| Color Code | ANSI 61 |
| Length | 9.4 in |
| Protection Rating | NEMA Type 12 |
| Mounting (G x H) (inch) | 7.28 x 7.62 |
| Type Number | Type 13 |
| Modification Services | Yes |
| Size | 6PB x 30.5mm |
| Thickness (T) (gauge) | 14 |
| IP Rating | IP65 |
| Overall Dimensions (L x W) (inch) | 7.78 x 8.72 |
| Height (H) (inch) | 7.25 |
| Mounting | 7.28 x 7.62 in / 185 x 194 mm |
| Overall Dimensions | 7.78 x 8.72 in / 198 x 221 mm |
| Thickness | 14 ga / 1.9 mm |
| Overall Height | 7-1/4 in |
| Panel Cutout Diameter | 30 mm |
| Overall Depth | 6-3/4 in |
| Compatible Conduit Size - Maximum | No Conduit Entrance Holes Provided |
| NEMA Enclosure Rating | 12 |
| Overall Width | 8-1/2 in |
| Package Quantity | 1 |
