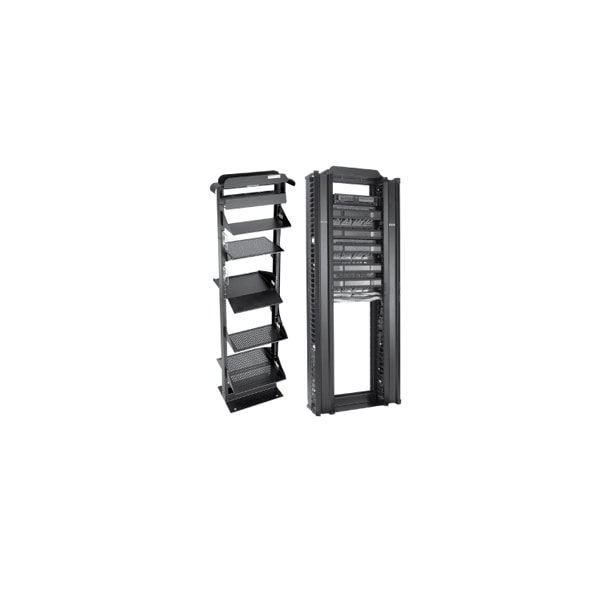

Relay Rack, 84 in. H x 20-1/4 in. W x 15 in. L, Aluminum
| Item | Relay Rack |
|---|---|
| Dimension | 84 in. H x 20-1/4 in. W x 15 in. L |
| Height | 84 in |
| Width | 20-1/4 in |
| Type | Two-Post |
| Material | Aluminum |
| Color | Black |
| Finish | Powder Coated |
| Depth (D) (inch) | 15 |
| Thickness (T) (millimetre) | 3.5 |
| Height (H) (millimetre) | 2,134 |
| Depth | 15 in |
| Color Code | RAL 9005 |
| Height (H) (inch) | 84 |
| Nominal Frame Height (foot) | 7 ft. |
| Modification Services | Yes |
| Rack Units | 45 |
| Depth (D) (millimetre) | 381 |
| Thickness (T) (inch) | 0.14 |
| Length | 15 in |
| Standards | UL 2416 Listed; File No. E230874; cUL Listed per CSA C22.2 No. 182.4; File No. E230874; EIA 310-D |
| Nominal Frame Height | 7 ft. ft |
| Thickness | 0.14 in / 3.5 mm |
| Mounting Width | 19" |
| Package Quantity | 1 |
