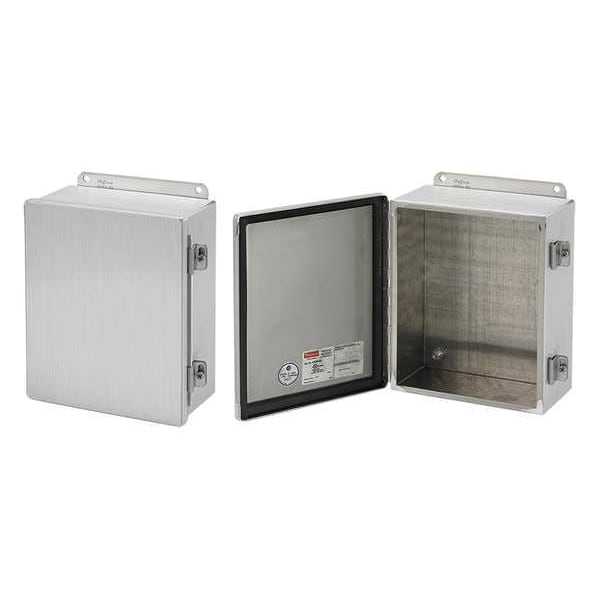

Screws and Clamps Electrical Enclosures, 10 in H, 4 in D, 8 in W, 12, 13, Aluminum
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 10 in |
| Nominal Depth | 4 in |
| NEMA Enclosure Rating | 12, 13 |
| Enclosure Material | Aluminum |
| Closure Method | Screws, Clamps |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Brushed |
| Mounting | Wall |
| Cover Style | Solid |
| Interior Panel | 32FR67 |
| Metal Gauge | 12 ga |
| Series | A51A |
| IP Rating | IP65 |
| Gasket | Neoprene |
| Solid / Clear Cover | Solid |
| Enclosure Cover Type | Non Hinged Clamp |
| Features | Weld Nuts for Mounting Panel and Terminals |
| Material of Enclosure | Aluminum |
| Standards | CSA File No 42184: Type 12, cUL Listed Per CSA C22.2 No 94, File No E27567, IEC 60529, NEMA/EEMAC Type 12, 13, UL 50, 50E Listed |
| Enclosure Cover Features | Clamps |
| Enclosure NEMA Rating | NEMA 12 |
| Environment - MERCH | Dust Tight |
| Body Material Thickness | 0.08 in |
| Compatible Panel Model Number | A10P8AL, A10P8G |
| Gasket Material | Neoprene |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
