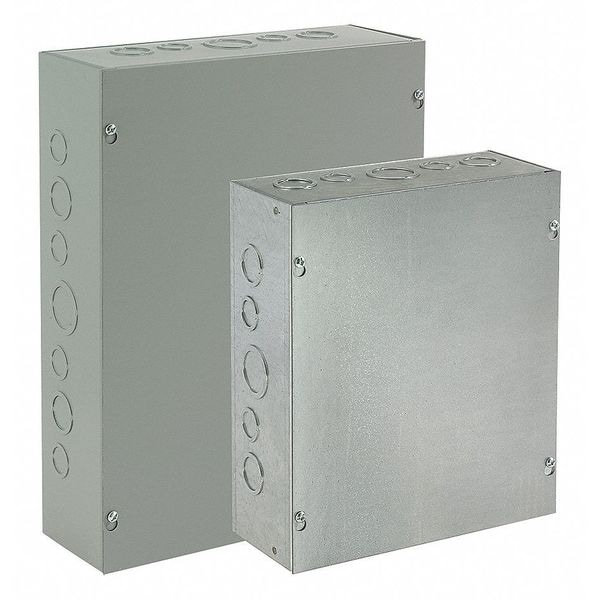

Steel Electrical Enclosures, 10 in H, 4 in D, 8 in W, NEMA 1, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 10 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Galvanized |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | cUL Listed per CSA C22.2 No 40, File No E27525, IEC 60529, NEMA/EEMAC Type 1, UL 50, 50E Listed |
| Series | A90P1 |
| Enclosure Cover Features | Screw Latch |
| Metal Gauge | 12/14/16 ga |
| Features | Mounting Holes |
| IP Rating | IP30 |
| Enclosure Material | Steel |
| Weight | 5.3 |
| Cover Screw Quantity | 4 |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Indoor |
| Includes Knockouts | Knockouts Included |
| Hazardous Location Specification | Not Applicable |
| Compatible Panel Model Number | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Cover Style | Solid |
| Cover Closure Type | Screw On |
| Package Quantity | 1 |
