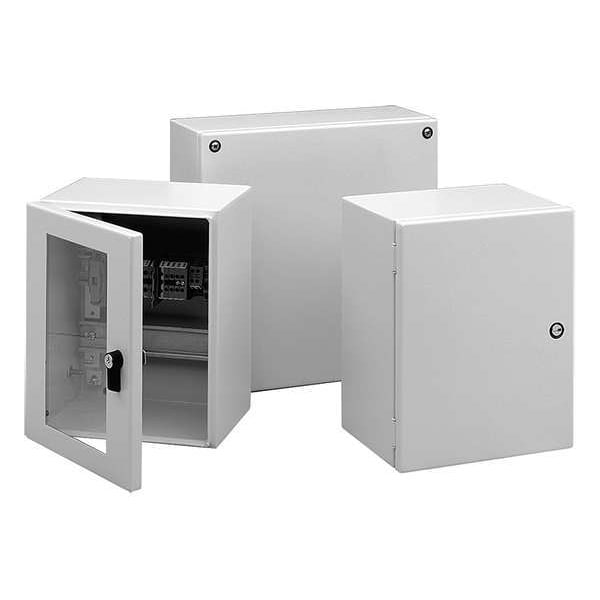

Steel Electrical Enclosures, 13.78 in H, 7.87 in D, 12 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 13.78 in |
| Nominal Depth | 7.87 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Light Gray |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA, File No 42186: Type 4 and 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 4 and 12, Type 3, 4, 12, UL 508A Listed |
| Metal Gauge | 16 ga |
| Interior Panel | 32FE94 |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Gasket | Neoprene |
| IP Rating | IP66 |
| Series | A54 |
| Includes | Grounding Hardware, Panel Mounting Screws, Sealing Washer |
| Enclosure Material | Steel |
| Features | 4 Watertight |
| Weight | 12.9 |
| NEMA Enclosure Rating | 12, 4, 3 |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | LP3530, LP3530G |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Gasket Material | Seamless Foam-In-Place |
| Hazardous Location Specification | Not Applicable |
| Environment - MERCH | Washdown |
| Package Quantity | 1 |
