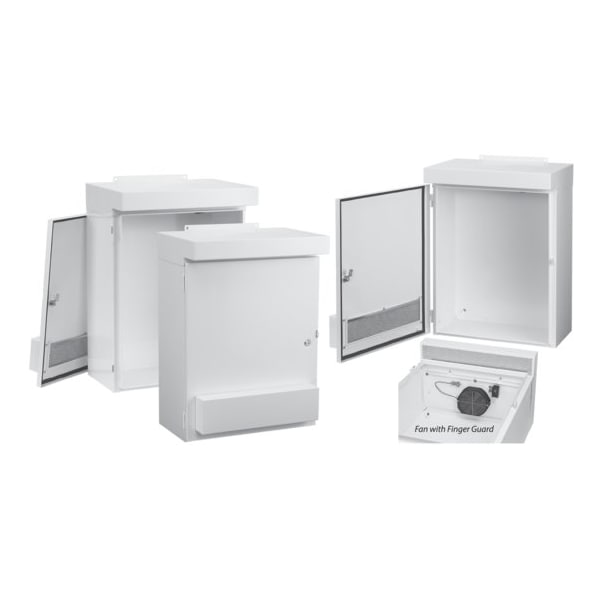

Steel Electrical Enclosures, 29 in H, 12 in D, 24 in W, NEMA 3R, Lift Off Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 29 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | White |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Foam-In-Place |
| IP Rating | IP32 |
| Series | A3RD |
| Metal Gauge | 14/16 ga |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Includes | Filter, Gasket |
| Interior Panel | 32FT44 |
| Standards | cUL Listed per CSA C22.2 No 94, File No. E61997, UL Listed |
| Features | 3R Weather-resistant, except dust |
| Enclosure Material | Steel |
| Weight | 96 |
| NEMA Enclosure Rating | 3R |
| Operating Voltage | 115V AC |
| Includes Knockouts | Knockouts Not Included |
| Maximum Airflow | 75 cfm |
| Thermostat Setpoint - Minimum | 70 Degrees F |
| Fan Diameter | 4 in |
| Includes Filter | Filter Included |
| Cover Closure Type | Hinged |
| Horsepower | 3 |
| Body Material Thickness | 14 ga |
| Number of Fans | 1 |
| Gasket Material | Polyester |
| Cover Material Thickness | 0.1 in |
| Compatible Panel Model Number | A24P24 |
| Compatible Filter Model Number | WFF1 |
| Thermostat Setpoint - Maximum | 140 Degrees F |
| Package Quantity | 1 |
