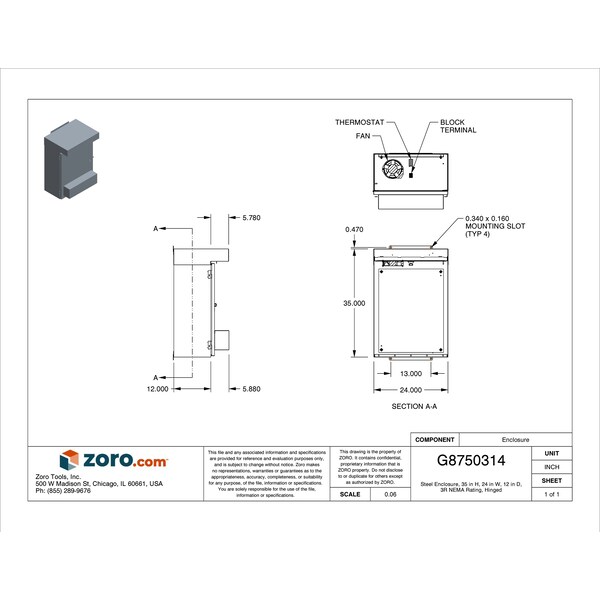

Steel Electrical Enclosures, 35 in H, 12 in D, 24 in W, NEMA 3R, Lift Off Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 35 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | White |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | cUL Listed per CSA C22.2 No 94, File No. E61997, UL Listed |
| IP Rating | IP32 |
| Series | A3RD |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Gasket | Seamless Foam-In-Place |
| Includes | Filter, Gasket |
| Interior Panel | 32FT50 |
| Metal Gauge | 14/16 ga |
| Enclosure Material | Steel |
| Features | 3R Weather-resistant, except dust |
| Compatible Panel Model Number | A30P24 |
| NEMA Enclosure Rating | 3R |
| Maximum Airflow | 160 cfm |
| Number of Fans | 1 |
| Operating Voltage | 115V AC |
| Thermostat Setpoint - Minimum | 70 Degrees F |
| Thermostat Setpoint - Maximum | 140 Degrees F |
| Body Material Thickness | 14 ga |
| Includes Filter | Filter Included |
| Includes Knockouts | Knockouts Not Included |
| Compatible Filter Model Number | WFF1 |
| Cover Material Thickness | 0.1 in |
| Fan Diameter | 6 in |
| Horsepower | 10 |
| Gasket Material | Polyester |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
