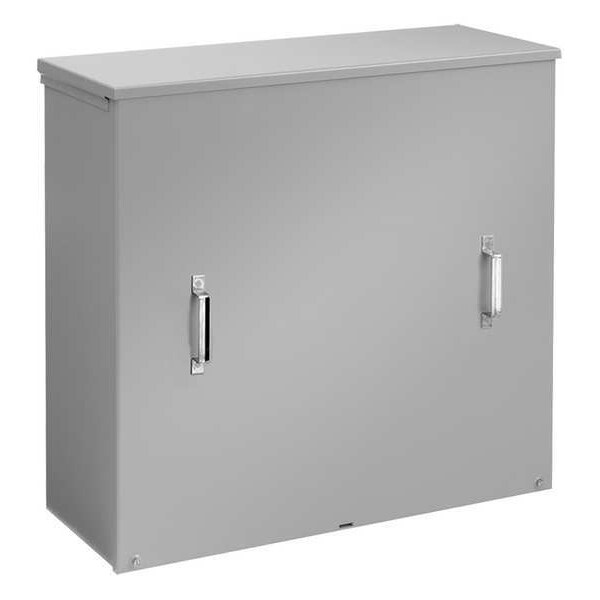

Steel Electrical Enclosures, 36 in H, 11 in D, 36 in W, NEMA 3R, Slip On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 36 in |
| Nominal Depth | 11 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Slip On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Solid / Clear Cover | Solid |
| Application | Provide Outdoor Protection and Security for Instrument Current Transformers |
| Length | 36 in |
| Sub-Category | Other Accessories |
| Material | Steel |
| Includes | Screws |
| IP Rating | IP32 |
| Features | 3R Weather-resistant, except dust |
| Standards | cUL Listed Per CSA C22.2 No 94, File No E27525, IEC 60529, Type 3R, UL 50, 50E Listed |
| Enclosure Material | Steel |
| Length (Straight Wireway) | 36.0 in |
| Cover Closure Type | Screw On |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Body Material Thickness | 12 ga |
| Environment - MERCH | Weather Resistant |
| Compatible Panel Model Number | Not Applicable |
| NEMA Enclosure Rating | 3R |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
