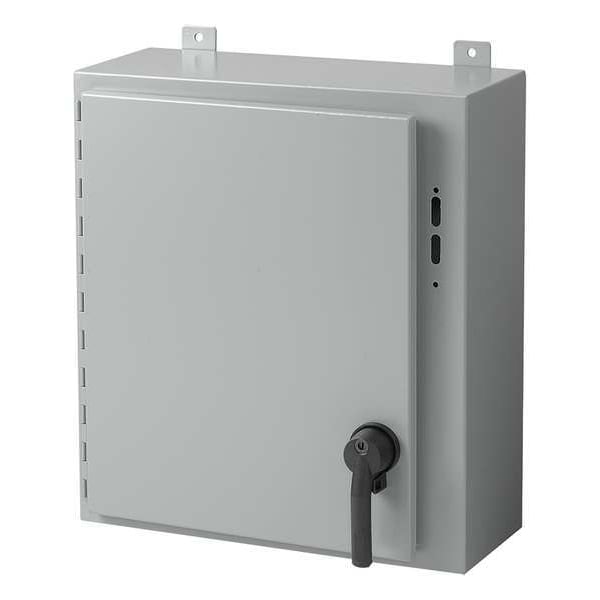

Steel Electrical Enclosures, 60 in H, 16 in D, 37.38 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 37.38 in |
| Nominal Height | 60 in |
| Nominal Depth | 16 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Steel |
| Closure Method | Handle |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 32FT73 |
| Series | A25 |
| Standards | cUL Listed per CSA C22.2 No. 94, File No. E61997, UL 508A Listed |
| IP Rating | IP66 |
| Features | Data Pocket, Holes for Operating Handle |
| Enclosure Cover Features | Heavy Duty Handle with 3 Internal Locking Points |
| Gasket | Neoprene |
| Metal Gauge | 14 ga |
| Includes | External Mounting Brackets |
| Enclosure Material | Steel |
| Weight | 200 |
| Interior Color | White |
| Data Pocket Size | 12.00 x 12.00 in / 305 x 305 mm |
| With or Without Handle | With |
| Exterior Color | Gray |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Data Pocket Width | 12 in |
| Includes Handle | Handle Included |
| Gasket Material | Neoprene |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 13 |
| Data Pocket Height | 12 in |
| Compatible with Panel Model Numbers | A60P36 |
| Package Quantity | 1 |
