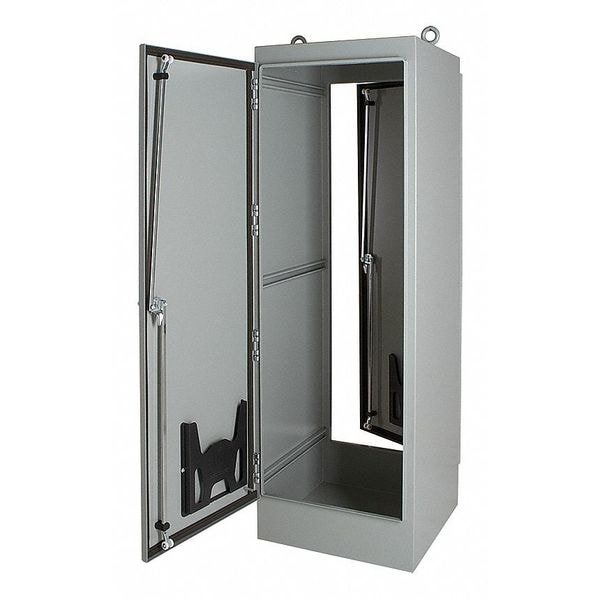

Steel Electrical Enclosures, 60.06 in H, 18.06 in D, 24 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 60.06 in |
| Nominal Depth | 18.06 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Solid / Clear Cover | Solid |
| Series | A30 |
| Metal Gauge | 12 ga |
| Gasket | Neoprene |
| Interior Panel | Mfr. No. A60P24F1 |
| Standards | CSA, File No 42186, Type 12, cUL Listed Per CSA C22.2 No 94, EIA RS310D, File No E61997, IEC 60529, NEBS- Telcordia GR-63-CORE Zone 4, Tested with 1000 lbs Evenly Distributed, OSHPD Pre-Approval OPM-0247-13, UL 508A Listed |
| IP Rating | IP55 |
| Enclosure Cover Features | Heavy Duty Handle with 3 Internal Locking Points |
| Features | 12 Indoor, dust-resistant |
| Enclosure Material | Steel |
| Load Capacity | Not Applicable |
| Weight | 234 |
| Lifting Eye Quantity | 2 |
| NEMA Enclosure Rating | 12 |
| Gasket Material | Neoprene |
| Cover Style | Solid |
| Environment - MERCH | Dust Tight |
| Cover Closure Type | Hinged |
| Hazardous Location Specification | Not Applicable |
| Body Material Thickness | 12 ga |
| Compatible Panel Model Number | A60P24F1 |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
