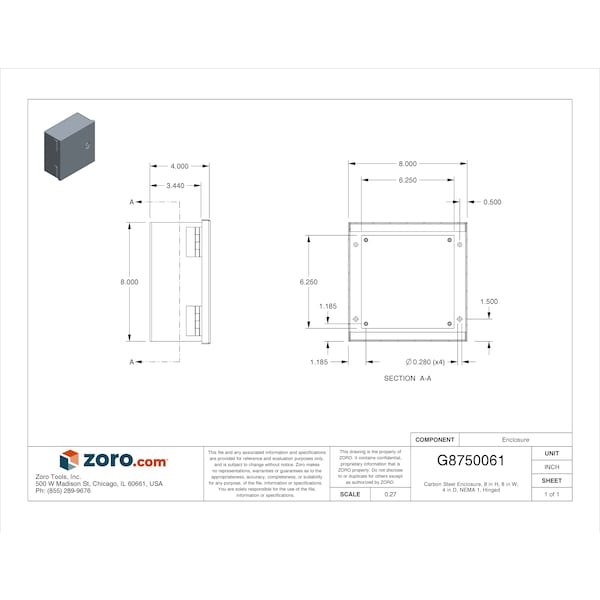

Steel Electrical Enclosures, 8 in H, 4 in D, 8 in W, NEMA 1, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Steel |
| Closure Method | Flush Slotted Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | A1SM |
| IP Rating | IP30 |
| Features | Mounting Holes |
| Enclosure Cover Features | Slotted Flush Screw |
| Metal Gauge | 16 ga |
| Gasket | Neoprene |
| Interior Panel | 32FT23 |
| Standards | CSA, File 42184: Type 1, cUL Listed per CSA C22.2 No 40, File No E27567, IEC 60529, NEMA/EEMAC Type 1, UL 50, 50E Listed |
| Enclosure Material | Steel |
| Includes | Screws |
| Weight | 5 |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Environment - MERCH | Indoor |
| Cover Style | Solid |
| Compatible Panel Model Number | A8N8P |
| NEMA Enclosure Rating | 1 |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
