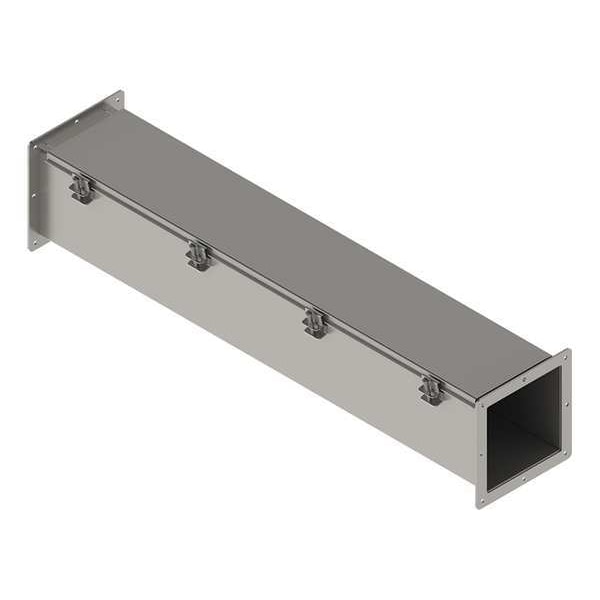

Straight Section Wireway, 12, 4, 4X Rating, Stainless Steel, Unfinished
| Item | Straight Section Wireway |
|---|---|
| With/Without Knockouts | No |
| Finish | Unfinished |
| Length | 36 in |
| Height | 6 in |
| Width | 6 in |
| NEMA Rating | 12, 4, 4X |
| Cover Type | Hinged |
| Material | Stainless Steel |
| Standards | CSA Certified, File No. 42184 Type 1, File No. E27524, IEC 60529, IP66, UL 870 |
| Length (Straight Wireway) | 36 in |
| Cover Locking Style | Screw Clamp |
| With Knockouts | No |
| Color | Gray |
| Gauge | 16 ga |
| Depth | 36 in / 914 mm |
| Type | Straight Section |
| Height (H) (inch) | 6 |
| Thickness (T) (millimetre) | 1.59 |
| Depth (D) (millimetre) | 914 |
| Thickness (T) (gauge) | 16 |
| Width (W) (inch) | 6 |
| Depth (D) (inch) | 36 |
| Width (W) (millimetre) | 152 |
| Type Number | Type 4X |
| Protection Rating | NEMA Type 12 |
| Height (H) (millimetre) | 152 |
| IP Rating | IP66 |
| Wireway | Stainless Steel Feed-Through NEMA Type 4X Wireway |
| Thickness | 16 ga / 1.59 mm |
| Package Quantity | 1 |
