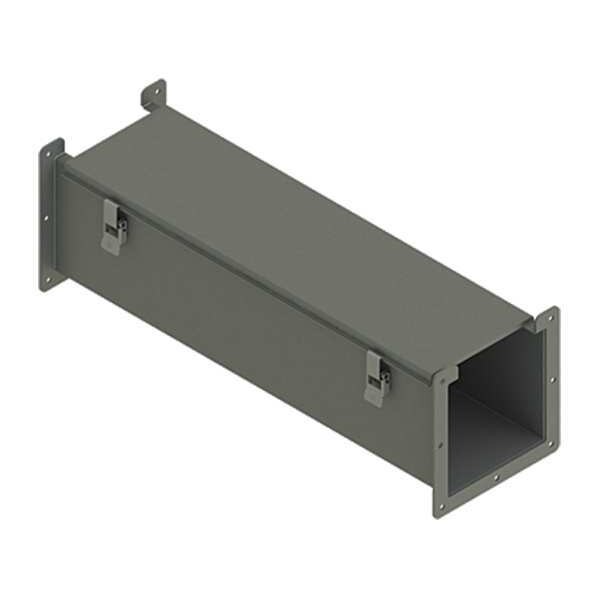

Straight Section Wireway, 12 Rating, Steel, Powder Coated
| Item | Straight Section Wireway |
|---|---|
| With/Without Knockouts | No |
| Finish | Powder Coated |
| Length | 24 in |
| Height | 6 in |
| Width | 6 in |
| NEMA Rating | 12 |
| Cover Type | Quick-Release |
| Material | Steel |
| Standards | CSA Certified, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC Standards: EGP-1-1967 and EMP-1-1967, UL 870 |
| Cover Locking Style | Latch |
| Color | Gray |
| With Knockouts | No |
| Length (Straight Wireway) | 24 in |
| Gauge | 14 ga |
| Depth | 24 in / 610 mm |
| Sealing Plate Type | Flat |
| Protection Rating | NEMA Type 12 |
| Type Number | Type 12 |
| Width (W) (inch) | 6 |
| Depth (D) (inch) | 24 |
| Width (W) (millimetre) | 152 |
| Thickness (T) (millimetre) | 1.9 |
| Thickness (T) (gauge) | 14 |
| Color Code | ANSI 61 |
| Sealing Plate Quantity | 1 |
| Depth (D) (millimetre) | 610 |
| IP Rating | IP54 |
| Wireway | Lay-In NEMA Type 12 Wireway |
| Type | Straight Section |
| Height (H) (inch) | 6 |
| Height (H) (millimetre) | 152 |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
