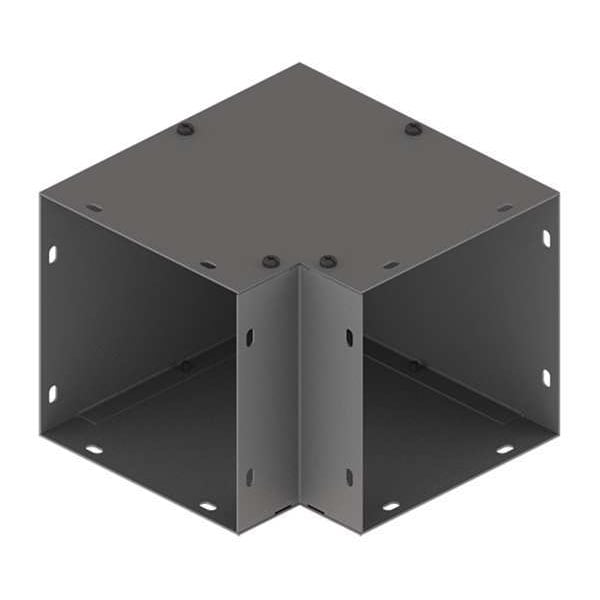

Wireway 90 Degree Elbow, 1 Type, NEMA 1 Rating, Steel, Painted
| Item | Wireway 90 Degree Elbow |
|---|---|
| With/Without Knockouts | No |
| NEMA Enclosure Type | 1 |
| Finish | Painted |
| Length | 10 in |
| Height | 8 in |
| For Use With | F88 Series Wireways |
| Width | 10 in |
| NEMA Rating | NEMA 1 |
| Cover Type | Screw-On |
| Material | Steel |
| Standards | CSA C22.2 No. 26, File No. E27524, File No. E27524 NEMA/EEMAC Type 1, IEC 60529, UL 870 |
| Function | Any Side Can Be Removed, Retaining Lay-in Feature Regardless of How The Elbow is Oriented |
| With Knockouts | No |
| Gauge | 14 ga |
| For Wireway Width x Height | 8 in x 8 in |
| Length (Straight Wireway) | 10 in |
| Cover Location | Any Side |
| Color | Gray |
| Cover Locking Style | Screw Clamps |
| For Wireway Height | 8 in |
| For Wireway Width | 8 in |
| Wireway | Lay-In NEMA Type 1 Hinged-Cover Wireway |
| Type | Elbow |
| Color Code | ANSI 61 |
| IP Rating | IP30 |
| Width (W) (millimetre) | 203 |
| Protection Rating | NEMA Type 1 |
| Modification Services | Yes |
| Height (H) (millimetre) | 203 |
| Width (W) (inch) | 8 |
| Thickness (T) (millimetre) | 1.9 |
| Height (H) (inch) | 8 |
| Thickness (T) (gauge) | 14 |
| Type Number | Type 1 |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
