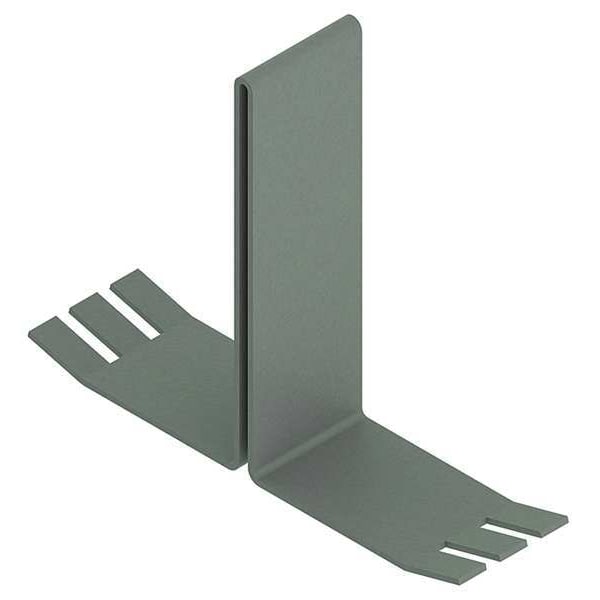

Wireway Barrier Bracket, 12 Type, NEMA 12 Rating, Steel, Painted
| Item | Wireway Barrier Bracket |
|---|---|
| With/Without Knockouts | Without Knockouts |
| Finish | Painted |
| NEMA Enclosure Type | 12 |
| Length | 59-3/4 in |
| Height | 3 in |
| For Use With | F44 Series Wireways |
| Width | 4.3 in |
| NEMA Rating | NEMA 12 |
| Material | Steel |
| Standards | CSA EMP-1-1967, EEMAC 12, File No. 42184, File No. E27524, IP54, JIC EGP-1-1967, NEMA, IEC 60529 Type 1, UL 870 |
| Includes | (5) Barriers |
| Gauge | 14 ga |
| Length (Straight Wireway) | 59-3/4 in |
| For Wireway Width | 4 in |
| Color | Gray |
| For Wireway Height | 4 in |
| For Wireway Width x Height | 4 in x 4 in |
| With Knockouts | Without Knockouts |
| Depth | 1 in / 25 mm |
| Width (W) (inch) | 4 |
| Protection Rating | NEMA Type 12 |
| Width (W) (millimetre) | 102 |
| Height (H) (inch) | 4 |
| Thickness (T) (gauge) | 14 |
| Thickness (T) (millimetre) | 1.9 |
| Color Code | ANSI 61 |
| Type | Kit |
| Modification Services | Yes |
| Depth (D) (millimetre) | 25 |
| Depth (D) (inch) | 1 |
| Wireway | Lay-In NEMA Type 12 Wireway |
| Height (H) (millimetre) | 102 |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
