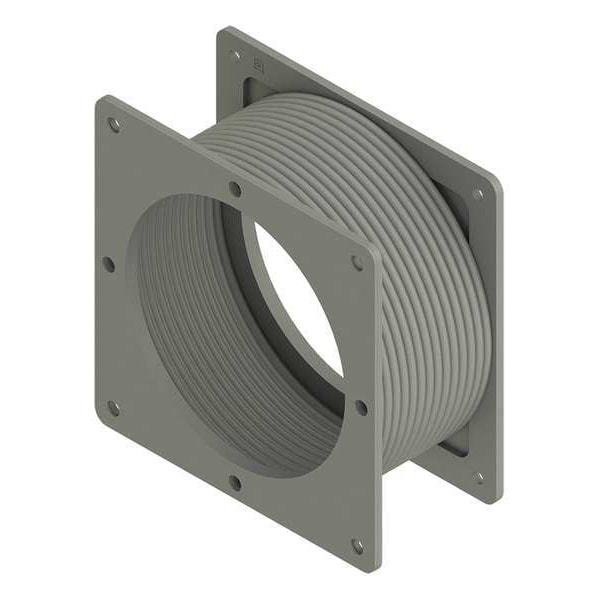

Wireway Flexible Fitting, 12 Type, NEMA 12 Rating, Steel, Painted
| Item | Wireway Flexible Fitting |
|---|---|
| With/Without Knockouts | Without Knockouts |
| NEMA Enclosure Type | 12 |
| Finish | Painted |
| Length | 6 in |
| Height | 6 in |
| For Use With | F66 Series Wireways |
| Width | 8.1 in |
| NEMA Rating | NEMA 12 |
| Material | Steel |
| Standards | CSA EMP-1-1967, EEMAC 12, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA, UL 870 |
| Function | Isolates A Wireway Run From Shock and Vibration, Compensates for Misalignment |
| Gauge | 14 ga |
| For Wireway Width | 6 in |
| With Knockouts | Without Knockouts |
| For Wireway Width x Height | 6 in x 6 in |
| Color | Gray |
| Length (Straight Wireway) | 6 in |
| For Wireway Height | 6 in |
| Height (H) (millimetre) | 152 |
| Width (W) (millimetre) | 152 |
| IP Rating | IP54 |
| Type | Fitting |
| Height (H) (inch) | 6 |
| Modification Services | Yes |
| Protection Rating | NEMA Type 12 |
| Width (W) (inch) | 6 |
| Type Number | Type 12 |
| Wireway | Feed-Through NEMA Type 12 Wireway |
| Package Quantity | 1 |
