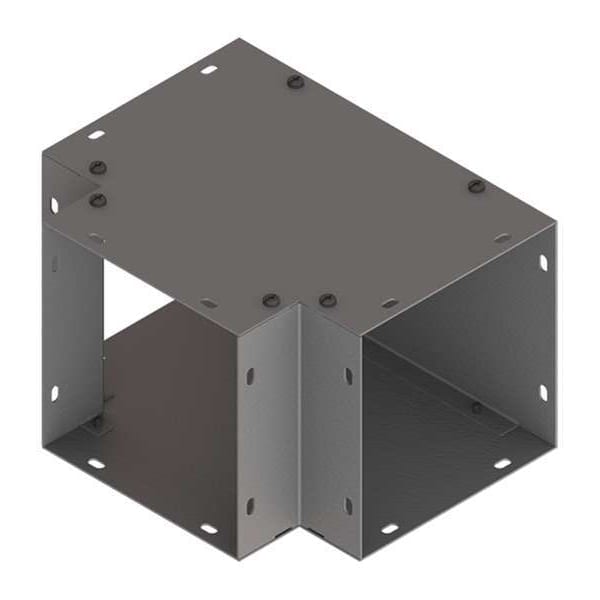

Wireway Tee, 1 Type, NEMA 1 Rating, Steel, Painted
| Item | Wireway Tee |
|---|---|
| With/Without Knockouts | No |
| NEMA Enclosure Type | 1 |
| Finish | Painted |
| Length | 6 in |
| Height | 6 in |
| For Use With | F66 Series Wireways |
| Width | 8 in |
| NEMA Rating | NEMA 1 |
| Cover Type | Screw-On |
| Material | Steel |
| Standards | CSA C22.2 No. 26, File No. E27524, File No. E27524 NEMA/EEMAC Type 1, IEC 60529, UL 870 |
| For Wireway Width | 6 in |
| Cover Locking Style | Screw Clamps |
| Color | Gray |
| Gauge | 16 ga |
| For Wireway Height | 6 in |
| For Wireway Width x Height | 6 in x 6 in |
| Length (Straight Wireway) | 6 in |
| Cover Location | Top |
| With Knockouts | No |
| Modification Services | Yes |
| Type Number | Type 1 |
| Type | Tee |
| Width (W) (inch) | 2.5 |
| Thickness (T) (gauge) | 16 |
| Wireway | Lay-In NEMA Type 1 Hinged-Cover Wireway |
| Protection Rating | NEMA Type 1 |
| IP Rating | IP30 |
| Height (H) (millimetre) | 64 |
| Width (W) (millimetre) | 64 |
| Thickness (T) (millimetre) | 1.52 |
| Color Code | ANSI 61 |
| Height (H) (inch) | 6 |
| Thickness | 16 ga / 1.52 mm |
| Package Quantity | 1 |
