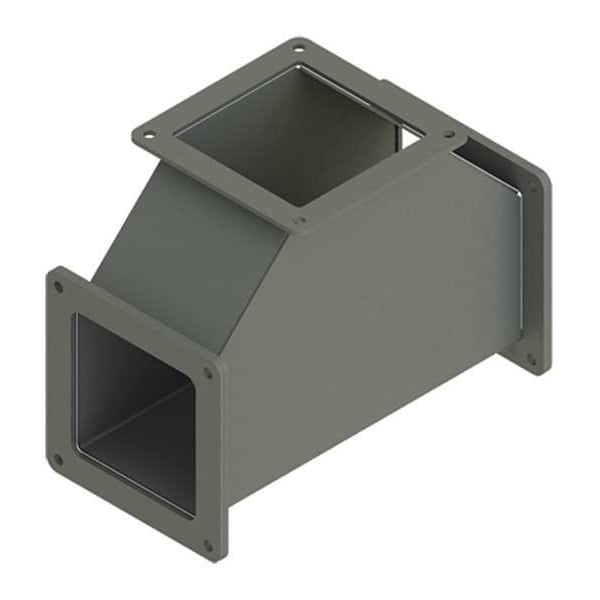

Wireway Tee, 12 Type, NEMA 12 Rating, Steel, Painted
| Item | Wireway Tee |
|---|---|
| With/Without Knockouts | No |
| Finish | Painted |
| NEMA Enclosure Type | 12 |
| Length | 4 in |
| Height | 7 in |
| For Use With | F44 Series Wireways |
| Width | 10 in |
| NEMA Rating | NEMA 12 |
| Cover Type | Non-Removable Cover, Feed-Thru |
| Material | Steel |
| Standards | CSA EMP-1-1967, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, UL 870 |
| With Knockouts | No |
| Color | Gray |
| Gauge | 14 ga |
| Length (Straight Wireway) | 4 in |
| For Wireway Height | 4 in |
| Includes | Gaskets, Screws |
| For Wireway Width x Height | 4 in x 4 in |
| For Wireway Width | 4 in |
| Thickness (T) (millimetre) | 1.9 |
| IP Rating | IP54 |
| Height (H) (millimetre) | 102 |
| Width (W) (millimetre) | 102 |
| Protection Rating | NEMA Type 12 |
| Color Code | ANSI 61 |
| Type | Tee |
| Modification Services | Yes |
| Wireway | Feed-Through NEMA Type 12 Wireway |
| Height (H) (inch) | 4 |
| Type Number | Type 12 |
| Width (W) (inch) | 4 |
| Thickness (T) (gauge) | 14 |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
