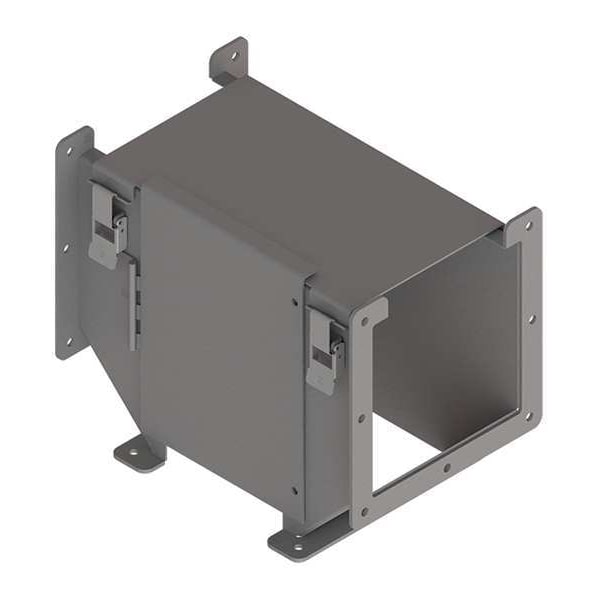

Wireway Tee, 12 Type, NEMA 12 Rating, Steel, Painted
| Item | Wireway Tee |
|---|---|
| With/Without Knockouts | No |
| NEMA Enclosure Type | 12 |
| Finish | Painted |
| Length | 12 in |
| Height | 6 in |
| For Use With | F66 Series Wireways |
| Width | 6 in |
| NEMA Rating | NEMA 12 |
| Cover Type | Hinged |
| Material | Steel |
| Function | This Fitting is Used When The Covers of All Three Branches of The Wireway Run Are Open Along The Same Side |
| Standards | CSA EMP-1-1967, File No. 42184, File No. E27524, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, Type 1 IEC 60529, UL 870 |
| Color | Gray |
| Cover Locking Style | Quick-Release Latches |
| For Wireway Width | 6 in |
| Cover Location | Top, Outside |
| For Wireway Height | 6 in |
| With Knockouts | No |
| Gauge | 14 ga |
| Length (Straight Wireway) | 12 in |
| Includes | Gasket, Screws, Sealing Plate |
| For Wireway Width x Height | 6 in x 6 in |
| Thickness (T) (millimetre) | 1.9 |
| Width (W) (millimetre) | 152 |
| Thickness (T) (gauge) | 14 |
| Height (H) (inch) | 6 |
| Sealing Plate Type | Flat |
| Protection Rating | NEMA Type 12 |
| Wireway | Lay-In NEMA Type 12 Wireway |
| Type Number | Type 12 |
| Type | Tee |
| Color Code | ANSI 61 |
| Height (H) (millimetre) | 152 |
| IP Rating | IP54 |
| Modification Services | Yes |
| Width (W) (inch) | 6 |
| Thickness | 14 ga / 1.9 mm |
| Sealing Plate Quantity | 2 |
| Package Quantity | 1 |
