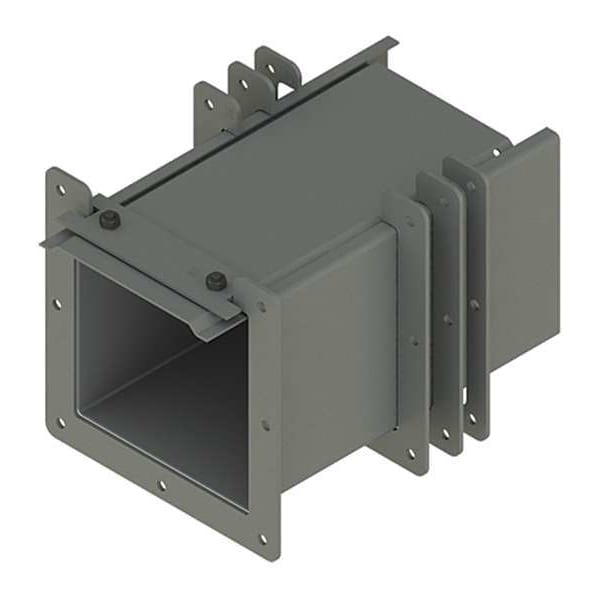

Wireway Telescope Fitting, 12 Type, NEMA 12 Rating, Steel, Painted
| Item | Wireway Telescope Fitting |
|---|---|
| With/Without Knockouts | No |
| Finish | Painted |
| NEMA Enclosure Type | 12 |
| Length | 6 in |
| Height | 6 in |
| For Use With | F66 Series Wireways |
| Width | 10-1/4 in |
| NEMA Rating | NEMA 12 |
| Cover Type | Screw-On |
| Material | Steel |
| Standards | CSA EMP-1-1967, File No. 42184, File No. E27524, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, Type 1 IEC 60529, UL 870 |
| Function | Length is Easily Adjustable From 1.00 in (25mm) to 7.00 in (178mm), No Cutting or Welding Required |
| For Wireway Width | 6 in |
| Includes | Gasket, Screws, Sealing Plate |
| Gauge | 14 ga |
| Cover Locking Style | Screw Clamps |
| With Knockouts | No |
| Cover Location | Top |
| Length (Straight Wireway) | 6 in |
| Color | Gray |
| For Wireway Height | 6 in |
| For Wireway Width x Height | 6 in x 6 in |
| Width (W) (inch) | 6 |
| Thickness (T) (millimetre) | 1.9 |
| Protection Rating | NEMA Type 12 |
| Color Code | ANSI 61 |
| IP Rating | IP54 |
| Height (H) (millimetre) | 152 |
| Height (H) (inch) | 6 |
| Thickness (T) (gauge) | 14 |
| Wireway | Lay-In NEMA Type 12 Wireway |
| Width (W) (millimetre) | 152 |
| Sealing Plate Type | Special |
| Modification Services | Yes |
| Type | Fitting |
| Sealing Plate Quantity | 1 |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
