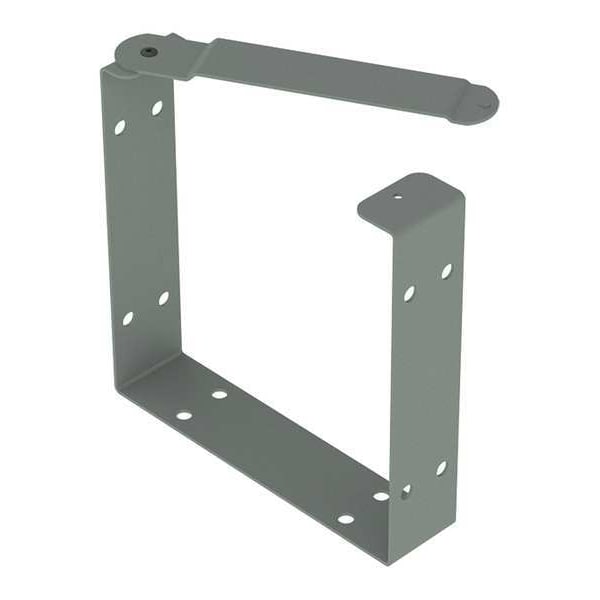

Wireway U-Connector, 1 Type, NEMA 1 Rating, Steel, Painted
| Item | Wireway U-Connector |
|---|---|
| With/Without Knockouts | Without Knockouts |
| Finish | Painted |
| NEMA Enclosure Type | 1 |
| Length | 12 in |
| Height | 12 in |
| For Use With | Hoffman F1212 Series Wireways |
| Width | 2 in |
| NEMA Rating | NEMA 1 |
| Material | Steel |
| Standards | CSA C22.2 No. 26, EEMAC Type 1, File No. E27524, File No. E27524 NEMA, IEC 60529, UL 870 |
| Function | Joins Wireway Sections and Fittings |
| Includes | Closure Plates or Reducers, Open Adapters, Panel Adapters, Telescope Fittings |
| Length (Straight Wireway) | 12 in |
| For Wireway Width x Height | 12 in x 12 in |
| Color | Gray |
| Gauge | 14 ga |
| For Wireway Height | 12 in |
| With Knockouts | Without Knockouts |
| For Wireway Width | 12 in |
| Depth | 2 in / 51 mm |
| Height (H) (inch) | 12 |
| Wireway | Lay-In NEMA Type 1 Hinged-Cover Wireway |
| Height (H) (millimetre) | 64 |
| Depth (D) (millimetre) | 51 |
| Type Number | Type 1 |
| IP Rating | IP30 |
| Protection Rating | NEMA Type 1 |
| Thickness (T) (gauge) | 14 |
| Depth (D) (inch) | 2 |
| Thickness (T) (millimetre) | 1.9 |
| Type | U-Connector |
| Width (W) (millimetre) | 64 |
| Modification Services | Yes |
| Width (W) (inch) | 2.5 |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Package Quantity | 1 |
