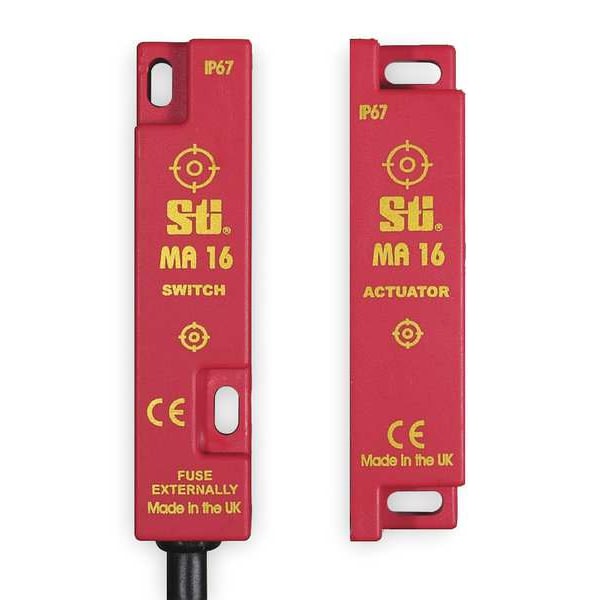

Interruptor de seguridad con accionamiento magnético Nema 6 de 1NC.
| Item | Magnetically Actuated Safety Interlock Switch |
|---|---|
| Series | MA |
| AC Contact Rating | Not Applicable |
| DC Contact Rating | 1 A @ 30 V |
| Contact Form | 1NC |
| IP Rating | IP67 |
| Operating Temp. Range | 14 to 131 deg F |
| Switch Width | 3/4 in |
| Switch Depth | 0.67 in |
| Actuator Depth | 3/4 in |
| Switch Height | 3-1/4 in |
| Actuator Width | 3/4 in |
| Includes | Actuator |
| On Sensing Distance | 0.28 in |
| Standards | cUL, UL Listed |
| Cable Length | 19.69 ft |
| NEMA Rating | 6 |
| Off Sensing Distance | 0.98 in |
| Termination Type | Pre-Cabled |
| Actuator Height | 3-1/4 in |
| Body Material | ABS |
| Port Location | Not Applicable |
| On Sensing Distance - Maximum | 0.47 in |
| NEMA Enclosure Rating | 6 |
| Magnet Actuator Depth | 3/4 in |
| Off Sensing Distance - Maximum | 0.98 in |
| On Sensing Distance - Minimum | 0.28 in |
| Manufacturer Warranty Length | 1 yr |
| Magnet Actuator Diameter | Not Applicable |
| Switch Type | Not Applicable |
| Indicating Light | No Indicating Light Included |
| Switch Diameter | Not Applicable |
| Off Sensing Distance - Minimum | 0.47 in |
| Magnet Actuator Width | 3/4 in |
| Body Style | Rectangular |
| Magnet Actuator Height | 3-1/4 in |
| Operating Temperature - Minimum | 14 deg F |
| Operating Temperature - Maximum | 131 deg F |
| Package Quantity | 1 |
