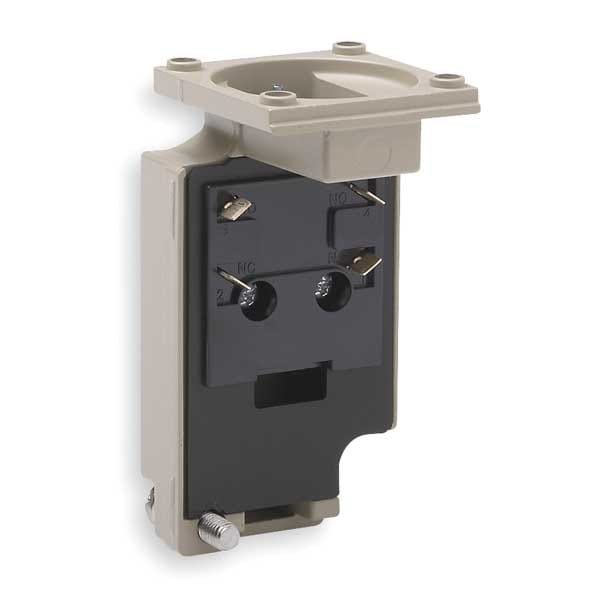

Caja de interruptor de límite 1NC/1NO Nema 3, 4, 4X, 6P, 12, 13 de alta calidad de la marca Omron. Diseñada para aplicaciones industriales exigentes.
| Item | Limit Switch Box |
|---|---|
| For Use With | Mfr. No. D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N and D4A2918N Limit Switches |
| Operating Temp. | -40 to 212 deg F |
| AC Contact Rating | 10 A @ 600 V |
| Contact Form | 1NO/1NC |
| Electrical Connection | Not Applicable |
| Standards | CSA, UL Listed |
| IP Rating | IP67 |
| NEMA Rating | 12, 13, 3, 4, 4X, 6P |
| Material | Stainless Steel |
| DC Contact Rating | 10 A |
| Indicating Light | No Indicating Light Included |
| Compatible with Manufacturer Model Number | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| Mounting Hole Diameter | 0.4 in |
| Operating Temperature - Maximum | 212 deg F |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Operating Temperature - Minimum | -40 deg F |
| NEMA Enclosure Rating | 12, 13, 3, 4, 4X, 6P |
| Number of Mounting Holes | 2 |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Compatible with Series | D4A-N |
| Body Configuration | Plug-In |
| Compatible Manufacturer Part Number | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| Compatible Manufacturer Model Number | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| Compatible with Mfr. Model No. | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| For Use with Mfr Model Number | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| For Use With Mfr. Model Number | D4A1101N, D4A1102N, D4A1103N, D4A1105N, D4A1109N, D4A1110N, D4A1111N, D4A1114N, D4A1116N, D4A2501N, D4A2509N, D4A2510N, D4A2717N, D4A2918N |
| Package Quantity | 1 |
