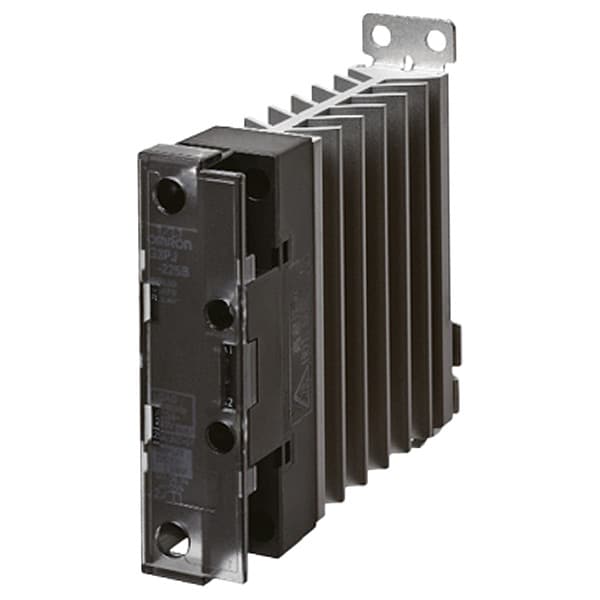

Interruptor de estado sólido monofásico de 25 amperios a 240VCA con tornillo.
| Heat Sink | Included |
|---|---|
| Input Voltage | 9.6 to 30V DC |
| Item | Solid State Relay |
| Standards | C-UL and TUV (EN 60947-4-3), Pollution Category 2, RoHS |
| Body Width | 0.88 in |
| Output Switching Mode | Zero Crossing |
| Response Time | 1 msec |
| Current Type | DC |
| Insulation Resistance | 100 megaohm at 500V DC |
| Series | G3PJ |
| Overall Depth | 3.93 in |
| Body Height | 3.93 in |
| Status Indicator | LED Indicator |
| Weight | 240 g |
| Input Current | 7 mA |
| Voltage Type | AC Output |
| Electrical Connection | Screw |
| Dielectric Strength | 2,500V AC |
| Maximum Operating Temperature | 80 deg C |
| Drop Out Voltage | 1.6 V |
| Minimum Operating Temperature | -30 deg C |
| Body Depth | 3.93 in |
| Electrical Phase | Single |
| Output Voltage Range | 19 to 264 V AC |
| Switch Component Type | Phototriac |
| Mounting Style | DIN Rail, Screw |
| Maximum Output Current with Heat Sink | 27 A |
| Package Quantity | 1 |
