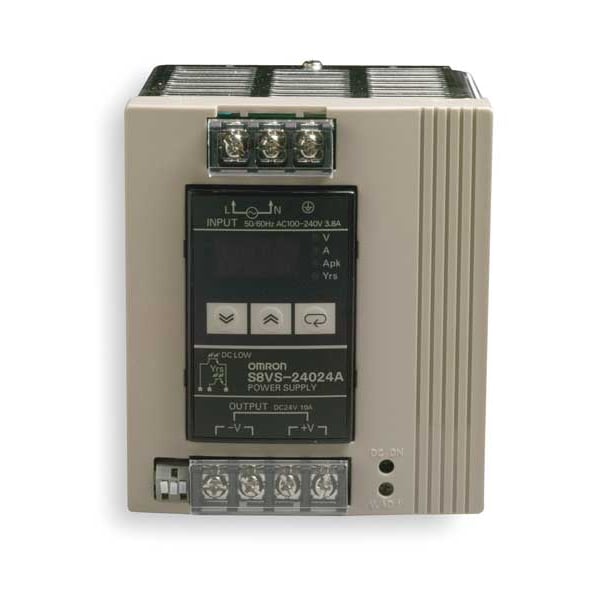

DC Power Supply, 100/240V AC, 24V DC, 240W, 10A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 240 W |
| Output Amps | 10 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 115 mm |
| Width | 3.94 in |
| Depth | 125 mm |
| Hz | 50/60 Hz |
| Hold Up Time | 46 msec |
| Operating Temp. Range | -13 to 149 deg F |
| Standards | CSA C22.2 No.107.1 (cUL), EN 62477-1, KOSHA S Mark *10, RCM Mark, UL 508 (Listing) |
| Features | Built-In Maintenance Forecast Monitor, Compact, Simple Functions for Easy System Commissioning, Thin Power Supplies That Mount Just About Anywhere to Contribute to Control Panel Downsizing |
| Series | S8VS |
| Status Indicator | Green LED |
| Output Noise | 160 mV |
| Wire Connection Type | Terminals |
| Manufacturer Warranty | 5 yr |
| Start Up Time - Maximum | 510 msec |
| Operating Temperature - Minimum | 14 deg F |
| Special Features | 7-Segment Display, Overload Protection, Overvoltage Protection, Undervoltage Alarm Indication |
| Current - Inrush | 28 A |
| Current - Output | 10 A |
| Input Frequency - Nominal | 50/60 Hz |
| Output Power - Rated | 240 W |
| Housing Material | Plastic |
| Wire Size - Minimum | 28 AWG |
| Wire Size - Maximum | 14 AWG |
| Mean Time Between Failures (MTBF) | 135,000 hr |
| Operating Temperature - Maximum | 185 deg F |
| Package Quantity | 1 |
