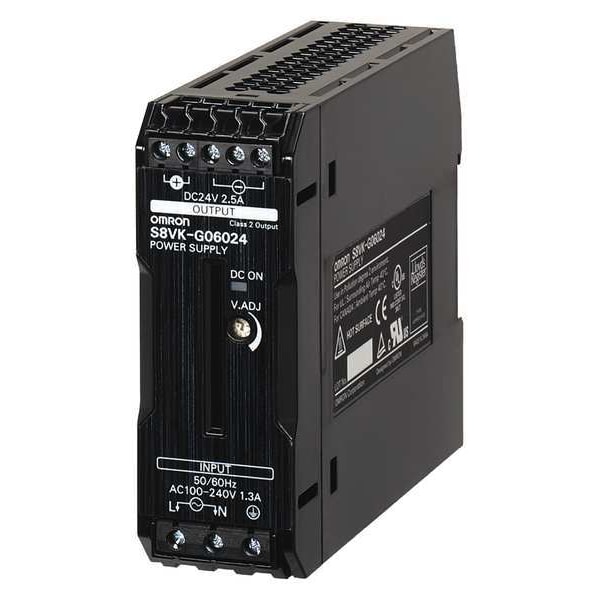

DC Power Supply, 100/240V AC, 24V DC, 60W, 2.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 60 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 90 mm |
| Width | 32 mm |
| Depth | 110 mm |
| Hz | 50/60 Hz |
| Operating Temp. Range | -40 to 158 deg F |
| Series | S8VK-G |
| Standards | CE, CSA C22.2 No. 107.1/62368-1, cULus, cURus, EN50178, EN61558-2-16, EN62368-1, Lloyd's Standards EN60204-1 PELV, UL 508/62368-1 |
| Hold Up Time | 25 msec |
| Features | It Also Saves Time And Reduces Costs Thanks To The Minimal Wiring Requirements And Easy One-Handed Mounting Provided By The Enhanced Din-Rail Mounting Clip, More Compact And Easier To Use, The S8VK Series Not Only Offers Greater Flexibility When Designing Machines |
| Status Indicator | Green LED |
| Output Noise | 50 mV |
| Peak Amps | 3 |
| IP Rating | IP20 |
| Wire Connection Type | Terminals |
| Start Up Time - Maximum | 790 msec |
| Operating Temperature - Maximum | 158 deg F |
| Housing Material | Metal |
| Special Features | Automatic Reset, LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Manufacturer Warranty | 3 yr |
| Mean Time Between Failures (MTBF) | 135,000 hr |
| Wire Size - Maximum | 12 AWG |
| Current - Peak | 3 A |
| Wire Size - Minimum | 22 AWG |
| Current - Inrush | 32 A |
| Output Power - Rated | 60 W |
| Operating Temperature - Minimum | -40 deg F |
| Input Frequency - Nominal | 50/60 Hz |
| Current - Output | 2.5 A |
| Package Quantity | 1 |
