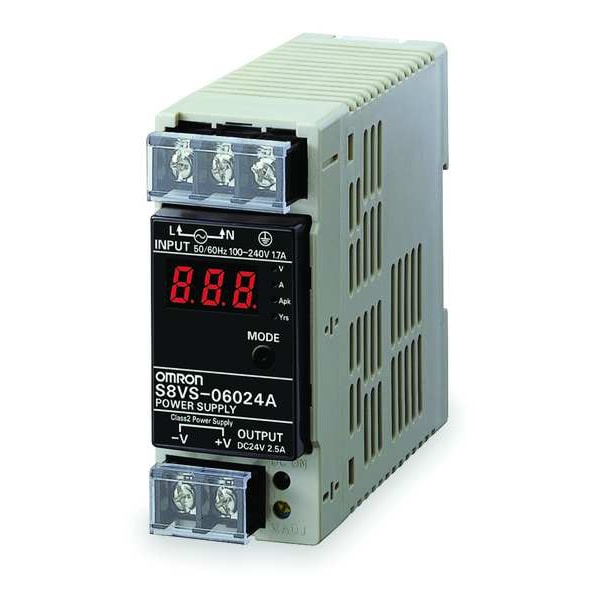

DC Power Supply, 100/240V AC, 24V DC, 60W, 2.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 60 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 95 mm |
| Width | 40 mm |
| Depth | 108 mm |
| Hz | 50/60 Hz |
| Operating Temp. Range | -13 to 149 deg F |
| Output Noise | 90 mV |
| Features | Built-In Maintenance Forecast Monitor, Compact, Simple Functions for Easy System Commissioning, Thin Power Supplies That Mount Just About Anywhere to Contribute to Control Panel Downsizing |
| Hold Up Time | 154 msec, 33 msec |
| Standards | Class 2 Output: Per UL1310), CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223), CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No.223, CSA C22.2 No.62368-1 (cUR), EN 62368-1, EN 62477-1, KOSHA S Mark *10, RCM Mark, UL 508, UL 508 (Listing, Class 2 Output: Per 1310), UL 62368-1 |
| Series | S8VS |
| Status Indicator | Green LED |
| Start Up Time - Maximum | 460 msec |
| Output Power - Rated | 60 W |
| Manufacturer Warranty | 5 yr |
| Wire Size - Minimum | 28 AWG |
| Input Frequency - Nominal | 50/60 Hz |
| Mean Time Between Failures (MTBF) | 135,000 hr |
| Current - Output | 2.5 A |
| Operating Temperature - Maximum | 185 deg F |
| Wire Connection Type | Terminals |
| Special Features | 7-Segment Display, Overload Protection, Overvoltage Protection, Undervoltage Alarm Indication |
| Operating Temperature - Minimum | 14 deg F |
| Housing Material | Plastic |
| Current - Inrush | 28 A |
| Wire Size - Maximum | 14 AWG |
| Package Quantity | 1 |
