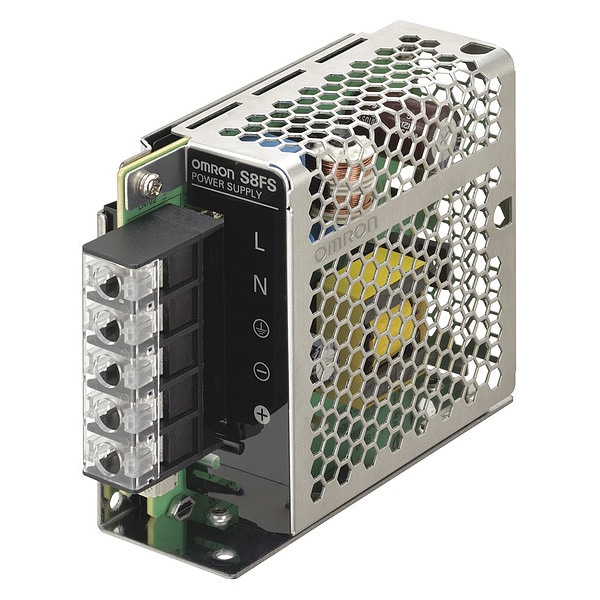

DC Power Supply, 100/240V AC, 5V DC, 15W, 3A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 5V DC |
| Power Rating | 15 W |
| Output Amps | 3 A |
| Mounting | DIN Rail |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 82 mm |
| Width | 34.8 mm |
| Depth | 92 mm |
| Hz | 50/60 Hz |
| Status Indicator | Green LED |
| Series | S8FS- G |
| Output Noise | 40 mV |
| Standards | cUL, cUR, SEMI F47-0706 (200 VAC input), UL 508 (Listing), UL: UL 60950-1 (Recognition), VDE |
| Hold Up Time | Greater than 15 msec |
| Operating Temperature - Maximum | 158 deg F |
| Wire Size - Maximum | 12 AWG |
| Housing Material | Aluminum, Stainless Steel |
| Current - Output | 3 A |
| Output Power - Rated | 15 W |
| Maximum Efficiency @ 230V AC | 80% |
| Special Features | Automatic Reset, LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Series Operation |
| Manufacturer Warranty | 5 yr |
| Start Up Time - Maximum | 1,000 msec |
| Wire Size - Minimum | 22 AWG |
| Operating Temperature - Minimum | -4 deg F |
| Wire Connection Type | Terminals |
| Input Frequency - Nominal | 50/60 Hz |
| Mean Time Between Failures (MTBF) | 135,000 hr |
| Current - Inrush | 28 A |
| Package Quantity | 1 |
