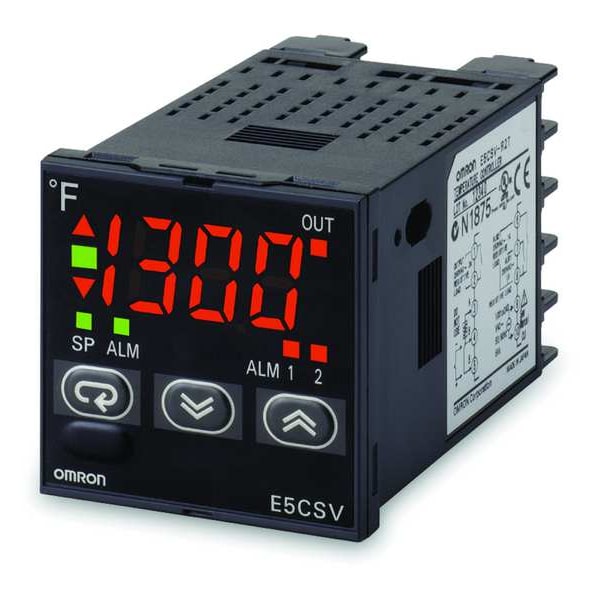

Controlador de temperatura digital, tamaño 1/16 DIN, de 100 a 240V CA, SPST NO, Modo de control de Encendido/Apagado o PID.
| Item | Temperature Controller |
|---|---|
| Digital/Analog | Digital |
| Description/Special Features | Deviation Indicator, Multiple Input, On/OFF Or PID With On Demand Auto Tune |
| Sensor Type | J, JPt100, K, L, N, Pt100, R, T, U |
| DIN Size | 0.0625 |
| Input Voltage | 100 to 240V AC |
| Switch Function | SPST NO |
| Output | (1) Relay |
| Temp. Range | Dependent on Sensor Type |
| Control Mode | On/Off or PID |
| Proportional Band | Self/Auto-Tuning PID |
| Depth | 3.31 in |
| Series | E5CS |
| Hysteresis | 0.2% of Full Scale |
| Setting Accuracy | +/-0.5% of PV or +/-10 Degrees C |
| Length | 1.89 in |
| Standards | UL,CSA,CE |
| Control Period | 20 Sec |
| Width | 1.89 in |
| Length (Straight Wireway) | 1.89 in |
| Package Quantity | 1 |
