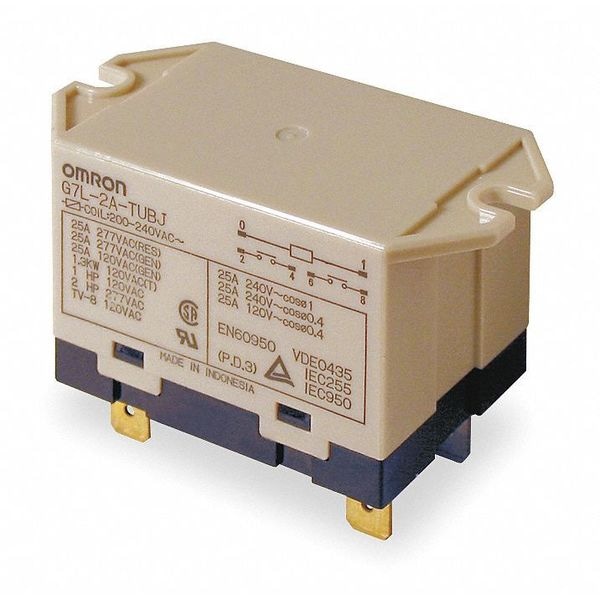

Este relé de potencia cerrado de Omron está diseñado para montaje en superficie con brida superior, con capacidad de 200/240V CA, 6 pines y 2 polos. Es ideal para aplicaciones de control de potencia.
| CAD Available | Yes |
|---|---|
| Item - Relay | Enclosed Power Relay |
| Coil Volts | 200/240V AC |
| AC Contact Rating - Relay | 25A @ 240V |
| Number of Pins - Relay | 6 |
| Contact Form - Relay | DPST-NO |
| Mounting - Relay | Bottom Flange |
| Power Consumption - Relay | 2.6 VA |
| Contact Material | Silver Tin Indium |
| Electrical Connection - Power Relay | 1/4 in Tab Terminal |
| Contact Form | DPST-NO |
| Contact Amp Rating (Resistive) | 25A @ 220VAC |
| Pins | 6 |
| Mounting | Flange, Top |
| Item | Enclosed Power Relay |
| HP @ 240V | 3 |
| Overall Height - Relay | 1.85 in |
| Coil Rating | 2.5 VA, 1.9 W |
| Features | Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage |
| Hz | 50/60 |

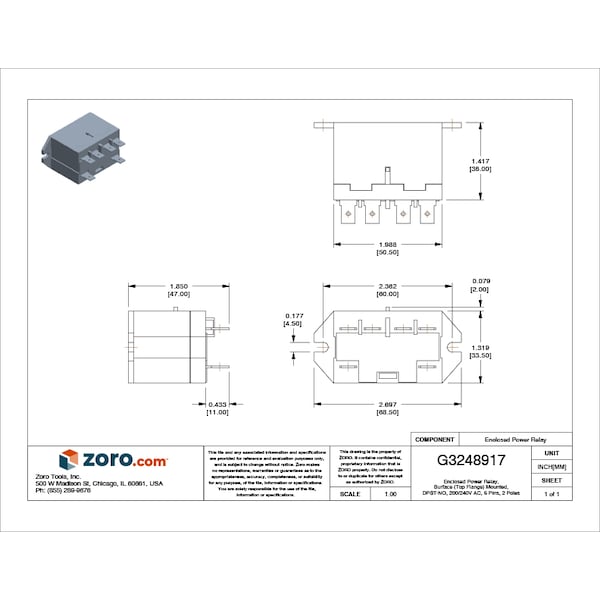

| Dimensions | 1.99"H, 1.40"W, 1.32"D |
| Contact Amp Rating (Inductive) | 25A @ 220VAC |
| Electrical Connection | Quick-Connect |
| Number of Poles | 2 |
| Standards | CSA Certified, TUV Certified, UL Listed, VDE/IEC950 |
| HP @ 120V | 1.5 |
| Hz - Electrical | 50/60 Hz |
| Horsepower @ 240V AC | 3 HP |
| Response Time | 30 msec |
| Sealing | Semi-Sealed |
| Input Voltage | 200/240V AC/DC, 24V AC |
| Operating Current | 25 A |
| Mechanical Operating Durability | 1,000,000 |
| Frequency | 60 Hz |
| Minimum Switching Current | 100 mA |
| Mounting Hole Diameter | 0.18 in |
| Number of Pins | 6 |
| Body Height | 1.417 in |
| Power Consumption | 1.7 VA, 2.5 VA |
| Contact Rating (AC) | 25 A @ 240V |
| Status Indicator | No Indicator |
| Mounting Style | Top Flange |
| Push-To-Test Method | Test Button |
| For Use With | Air Conditioners, Copy Machines, Facsimile Machines, Food Processing Equipment, Heater Switching Controllers, Lighting Controller, Microwaves, Motors, Office Equipment, Packers, Power Controllers |
| Electrical Operating Durability | 100,000 |
| Flat Pin Width | 1/4 in |
| Body Depth | 1.319 in |
| Resistance Properties | Flame-Resistant |
| Current Rating | 30 A |
| Horsepower @ 120V AC | 1.5 HP |
| Dielectric Strength | 2,000V AC between Contacts of Different Poles (DPST-NO Type), 2,000V AC between Contacts of Same Pole, 4,000V AC min./5,000V AC Typical between Coil and Contacts |
| Coil Voltage | 200/240V AC |
| Overall Depth | 1.85 in |
| Series | G7L Series |
| Motor Rated | Yes |
| Body Width | 1.988 in |
| Maximum Switching Voltage | 250 V AC |
| Insulation Resistance | 1,000 megaohm |
| Base Shape | Square |
| Body Depth - Relay | 1.32 in |
| Body Height - Relay | 1.41 in |
| Body Width - Relay | 1.99 in |
| Type | Power |
| Package Quantity | 1 |
