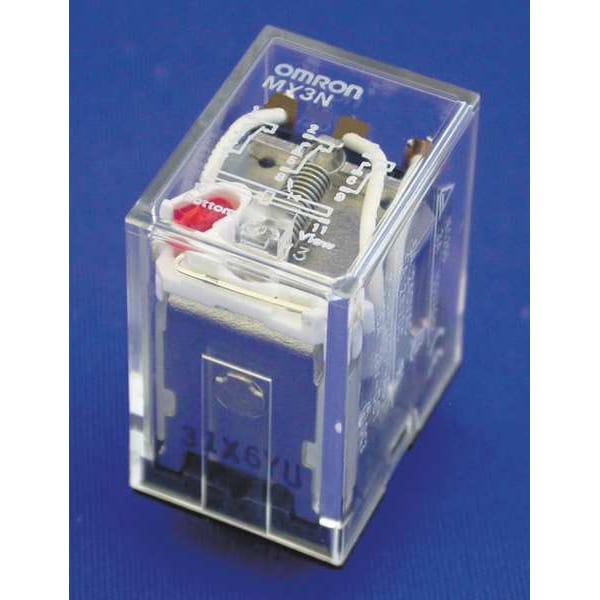

Relé de propósito general, 120V AC Voltios de bobina, Cuadrado, 11 pines, 3PDT
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 5A @ 240V |
| DC Contact Rating - Relay | 5 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 11 |
| Contact Form - Relay | 3PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/6 hp |
| Base Type | Square |
| Power Consumption - Relay | 1.1 VA |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Contact Rating | 5A @ 250VAC/30VDC |
| Standards | CSA Certified, UL Listed |
| Contact Form | 3PDT |
| HP @ 240V | 1/6 hp |
| Body Height - Relay | 1.42 in |
| Socket Code | R |
| Push To Test | Manual |
| Body Depth - Relay | 1.1 in |
| Body Width - Relay | 0.85 in |
| Item | General Purpose Relay |
| Pins | 11 |
| Overall Height - Relay | 1.67 in |
| Contact Material | Silver Alloy |
| Status Indicator | LED Indicator |
| Socket | Mfr. No. PYF11A |
| Maximum Operating Temperature | 158 deg F |
| Power Consumption | 0.9 VA, 1.2 VA |
| Body Depth | 1.42 in |
| Mounting Style | Plug-In |
| Body Height | 1.1 in |
| Pin Shape | Flat |
| Contact Rating (AC) | 2 A @ 240V, 5 A @ 240V |
| Flat Pin Width | 0.102 in |
| Electrical Connection | Quick-Connect |
| Contact Rating (DC) | 2 A @ 24 V, 5 A @ 24 V |
| Maximum Switching Voltage | 125 V DC, 250 V AC |
| Mechanical Operating Durability | 500,000,000 |
| Coil Resistance | 4,430 ohms |
| Base Shape | Square |
| Compatible with Manufacturer Model Number | PY11, PY11-02, PY11QN, PYF11A |
| Frequency | 50/60 Hz |
| Sealing | Enclosed |
| Weight | 1.23 oz |
| Horsepower @ 240V AC | 0.1667 HP |
| Body Width | 0.85 in |
| Motor Rated | Yes |
| Number of Pins | 11 |
| Minimum Operating Temperature | -67 deg F |
| Electrical Operating Durability | 500,000 |
| Push-To-Test Method | Manual |
| Series | MY Series |
| Insulation Resistance | 100 megaohm |
| Current Rating | 5 A |
| Horsepower @ 120V AC | 1/6 hp |
| Coil Voltage | 120 V AC |
| Overall Depth | 1.67 in |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts, 2,000V AC between Contacts of Different Polarity |
| Operating Current | 2 A at 220V AC (Inductive Load), 2 A at 24V DC (Inductive Load), 5 A at 220V AC (Resistive Load), 5 A at 24V DC (Resistive Load) |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Input Voltage | 120 V AC |
| Response Time | 20 msec |
| Package Quantity | 1 |
