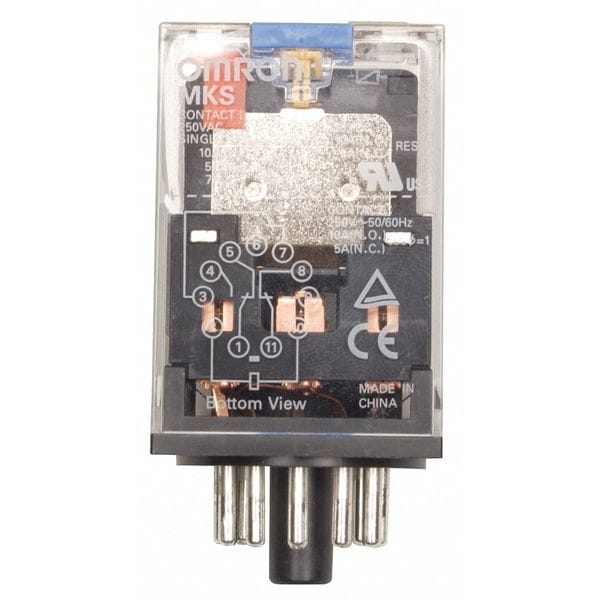

Relé de propósito general, 24V CA de voltaje de bobina, octal, 11 pines, 3PDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V AC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 11 |
| Contact Form - Relay | 3PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | Not Rated |
| Socket | Mfr. No. PF113A-E |
| Contact Form | 3PDT |
| Standards | RoHS Compliant, UL and IEC (TUV) Certified |
| HP @ 240V | Not Rated |
| Contact Material | Silver Tin Indium |
| Item | General Purpose Relay |
| Overall Height - Relay | 2-1/2 in |
| Power Consumption - Relay | 2.3 VA |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Body Depth - Relay | 1.36 in |
| Base Type | Octal |
| Push To Test | Lockable |
| Body Width - Relay | 1.36 in |
| Status Indicator | Mechanical Flag |
| Socket Code | B |
| Pins | 11 |
| Body Height - Relay | 2.07 in |
| Contact Rating | 10A @ 250VAC/30VDC |
| Flat Pin Width | Not Applicable |
| Base Shape | Octal |
| Frequency | 50/60 Hz |
| Horsepower @ 240V AC | Not Rated |
| Body Width | 1.36 in |
| Power Consumption | 2.3 VA, 2.7 VA |
| Mechanical Operating Durability | 5,000,000 |
| Compatible with Manufacturer Model Number | PF113A, PF113A-D, PF113A-E |
| Horsepower @ 120V AC | Not Rated |
| Body Depth | 2.07 in |
| Insulation Resistance | 100 megaohm |
| Contact Rating (AC) | 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO) |
| Body Height | 1.36 in |
| Weight | 3.17 oz |
| Number of Pins | 11 |
| Coil Resistance | 48.4 ohms |
| Maximum Switching Voltage | 250 V AC, 250 V DC |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity, 2,500V AC between Coil and Contacts, 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity |
| Minimum Operating Temperature | -40 deg F |
| Electrical Connection | Plug-In |
| Input Voltage | 24 V AC |
| Motor Rated | Not Rated - Not Rated |
| Response Time | 30 msec |
| Maximum Operating Temperature | 140 deg F |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Operating Current | 10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 250V AC (Resistive Load), 5 A at 30V DC (Resistive Load), 7 A at 250V AC (Inductive Load) |
| Pin Shape | Round |
| Electrical Operating Durability | 100,000 |
| Current Rating | 10 A |
| Push-To-Test Method | Lockable |
| Coil Voltage | 24 V AC |
| Overall Depth | 2-1/2 in |
| Sealing | Enclosed |
| Mounting Style | Plug-In |
| Series | MK-S Series |
| Contact Rating (DC) | 10 A @ 30V (NO), 5 A @ 30V (NC) |
| Package Quantity | 1 |
