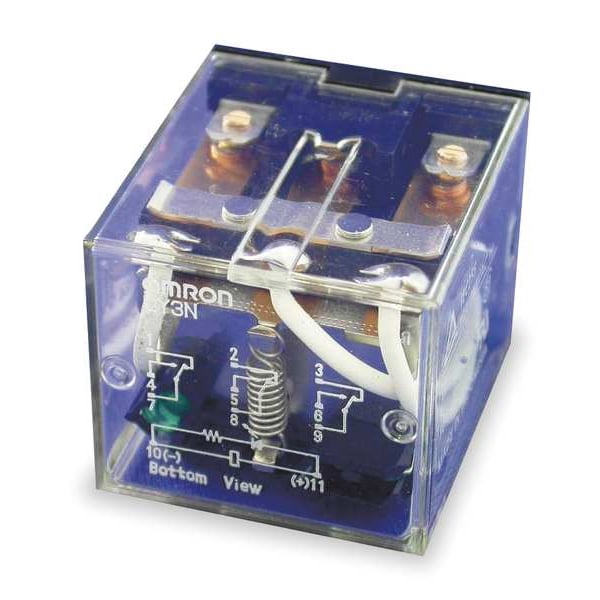

Relé de propósito general, 24V AC Voltios de bobina, cuadrado, 11 pines, 3PDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V AC |
| AC Contact Rating - Relay | 10A @ 120V |
| DC Contact Rating - Relay | 10 A @ 24 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 11 |
| Contact Form - Relay | 3PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/3 hp |
| Socket | Mfr. No. PTF11A |
| Contact Material | Silver Alloy |
| Overall Height - Relay | 1.69 in |
| Body Height - Relay | 1.44 in |
| Status Indicator | LED Indicator |
| Body Depth - Relay | 1.1 in |
| Contact Rating | 10A @ 120VAC/24VDC |
| Push To Test | Manual |
| HP @ 240V | 1/2 hp |
| Item | General Purpose Relay |
| Contact Form | 3PDT |
| Power Consumption - Relay | 2 VA |
| Socket Code | E |
| Pins | 11 |
| Standards | CE Certified, CSA Certified, TUV Certified, UL Listed |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Body Width - Relay | 1.24 in |
| Base Type | Square |
| Features | Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts |
| Insulation Resistance | 100 megaohm |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Base Shape | Square |
| Minimum Operating Temperature | -13 deg F |
| Contact Rating (AC) | 10 A @ 120V, 7.5 A @ 120V |
| Overall Depth | 1.69 in |
| Pin Shape | Flat |
| Flat Pin Width | 0.197 in |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts, 2,000V AC between Contacts of Different Polarity |
| Input Voltage | 24 V AC |
| Weight | 1.76 oz |
| Coil Resistance | 100 ohms |
| Electrical Connection | Quick-Connect |
| Contact Rating (DC) | 10 A @ 24 V, 5 A @ 24 V |
| Operating Current | 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load) |
| Coil Voltage | 24 V AC |
| Response Time | 25 msec |
| Frequency | 50/60 Hz |
| Current Rating | 10 A |
| Electrical Operating Durability | 200,000 |
| Mounting Style | Plug-In |
| Mechanical Operating Durability | 500,000,000 |
| Horsepower @ 240V AC | 0.5 HP |
| Power Consumption | 0.53 W |
| Series | LY Series |
| Body Height | 1.1 in |
| Body Depth | 1.44 in |
| Maximum Switching Voltage | 125 V DC, 250 V AC |
| Horsepower @ 120V AC | 1/3 hp |
| Motor Rated | Yes |
| Body Width | 1.24 in |
| Compatible with Manufacturer Model Number | PT11, PT11-0, PT11QN, PTF11A |
| Number of Pins | 11 |
| Push-To-Test Method | Manual |
| Maximum Operating Temperature | 104 deg F |
| Sealing | Enclosed |
| Package Quantity | 1 |
