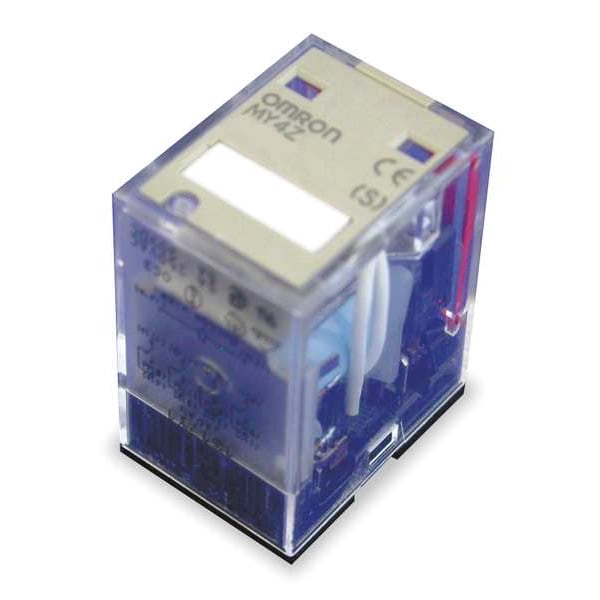

Relevador de uso general, 24V DC de voltaje en la bobina, cuadrado, 14 pines, 4PDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 3A @ 240V |
| DC Contact Rating - Relay | 3 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/6 hp |
| Features | Cadmium Free Contacts |
| Status Indicator | None |
| Body Height - Relay | 1.38 in |
| Contact Material | Silver Nickel |
| Base Type | Square |
| Standards | CE Marked, CSA Certified, SEV, UL Listed, VDE |
| HP @ 240V | 1/6 hp |
| Contact Rating | 3A @ 250VAC/30VDC |
| Body Width - Relay | 0.87 in |
| Body Depth - Relay | 1.12 in |
| Pins | 14 |
| Contact Form | 4PDT |
| Push To Test | Manual |
| Overall Height - Relay | 1.63 in |
| Power Consumption - Relay | 0.9 W |
| Item | General Purpose Relay |
| Socket Code | G |
| Socket | Mfr. No. PYF14AE |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Input Voltage | 24 V DC |
| Horsepower @ 240V AC | 0.1667 HP |
| Maximum Operating Temperature | 158 deg F |
| Maximum Switching Voltage | 125 V DC, 250 V AC |
| Series | MY Series |
| Horsepower @ 120V AC | 1/6 hp |
| Insulation Resistance | 100 megaohm |
| Motor Rated | Yes |
| Body Depth | 1.42 in |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity |
| Overall Depth | 1.67 in |
| Mechanical Operating Durability | 20,000,000 |
| Compatible with Manufacturer Model Number | PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E |
| Flat Pin Width | 0.102 in |
| Electrical Connection | Quick-Connect |
| Number of Pins | 14 |
| Body Width | 0.85 in |
| Contact Rating (AC) | 0.8 A @ 240V, 3 A @ 240V |
| Body Height | 1.1 in |
| Base Shape | Square |
| Sealing | Enclosed |
| Coil Voltage | 24 V DC |
| Electrical Operating Durability | 100,000 |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Mounting Style | Plug-In |
| Coil Resistance | 662 ohms |
| Power Consumption | 0.9 W |
| Operating Current | 0.8 A at 220V AC (Inductive Load), 1.5 A at 24V DC (Inductive Load), 3 A at 220V AC (Resistive Load), 3 A at 24V DC (Resistive Load) |
| Minimum Operating Temperature | -67 deg F |
| Contact Rating (DC) | 1.5 A @ 24 V, 3 A @ 24 V |
| Current Rating | 5 A |
| Response Time | 20 msec |
| Push-To-Test Method | Manual |
| Weight | 1.23 oz |
| Pin Shape | Flat |
| Package Quantity | 1 |
